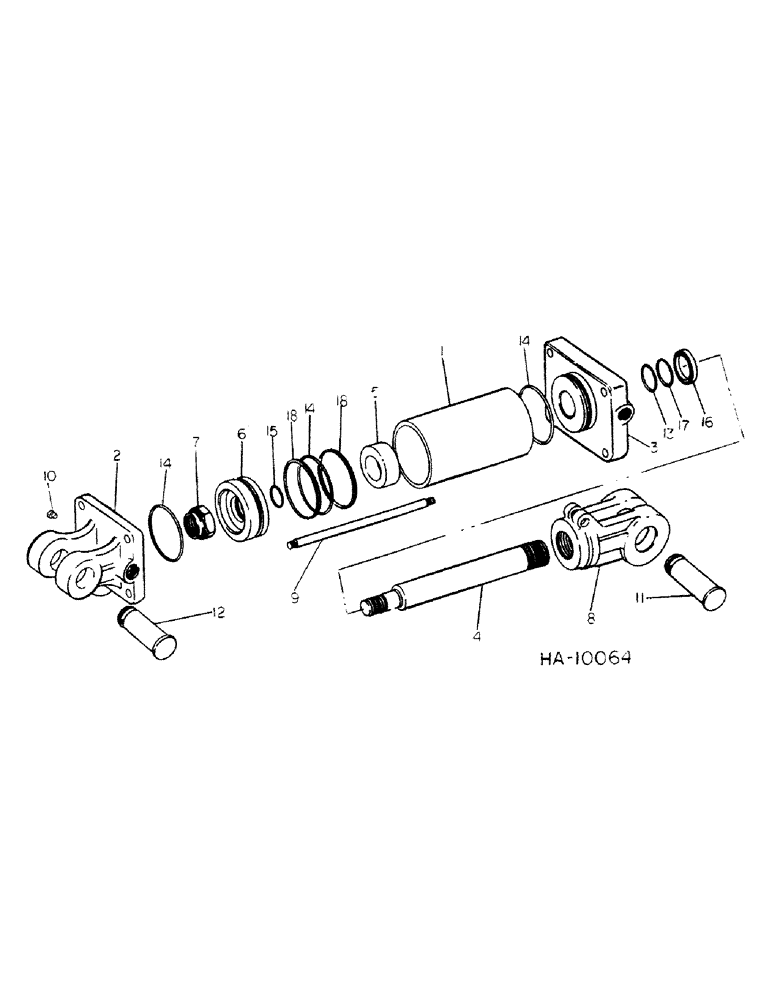

Запчасти Case IH 45 (D-73) - WING LIFT HYDRAULIC CYLINDER, CROSS, 31 FOOT 6 INCH MODEL BUILT AUG 1976 SEASON AND SINCE

811677C91

CYLINDER

CYL ASSY, hyd DA cross, opt to use 1-813238C91, prince

1шт.

1

812167C1

TUBE, cylinder body 3" ID, 3.38" OD, 3" Length

1шт.

2

812165C2

CLEVIS

cylinder base

1шт.

3

812166C2

END

cylinder

1шт.

4

ROD, piston, w/1-14 NS, 2 thread, for hyd cyl built 1970-1973, for service order 1-812265c1, rod, 1-812268C1, spacer, 1-812266C1 clevis and 1-812173C1, kit

1шт.

4

812265C1

ROD

piston, w/1-1/4-12 UNF rod thread, for hyd cyl built 1973 & since

1шт.

5

569239R1

SPACER, piston, 4 inch in length, for hyd cyl built 1970-1973

1шт.

5

812268C1

SPACER

piston, 4-1/4 inch in length, for hyd cyl built 1973 and since

1шт.

6

812169C1

PISTON

cylinder

1шт.

7

9413972

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 hex lock

1шт.

8

812170C1

CLEVIS, cylinder piston, w/1-14 NS, 2 thread, for hyd cyl built 1970-1973

1шт.

8

812266C1

CLEVIS

cylinder piston, w/1-1/4-12 UNF rod thread, for hyd cyl built 1973 & since

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

812172C1

ROD, cylinder tie, 56-3/4 inch w/7/16 inch thread, for hyd cyl built 1970-1973

4шт.

271501

SOCKET

NUT, 7/16-14 hex

8шт.

9

812267C1

ROD

cylinder tie, 57 inch w/1/2 inch thread, for hyd cyl built 1973 & since

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

10

(Not used this application)

1шт.

11

812171C1

PIN

clevis mounting

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

12

812171C1

PIN

clevis mounting

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

13

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125

1шт.

14

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2.625 x 3.000 x .188

3шт.

15

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

.750 x 1.000 x .125

1шт.

16

WIPER, piston rod, not serviced separately, for service order 1-812173C1, kit

1шт.

17

WASHER, back-up, not serviced separately, for service order 1-812173C1, kit

1шт.

18

WASHER, back-up, not serviced separately, for service order 1-812173C1, kit

2шт.

812173C1

SEAL KIT

KIT, seal repair service, consists of ref nos. 13 thru 18

1шт.
