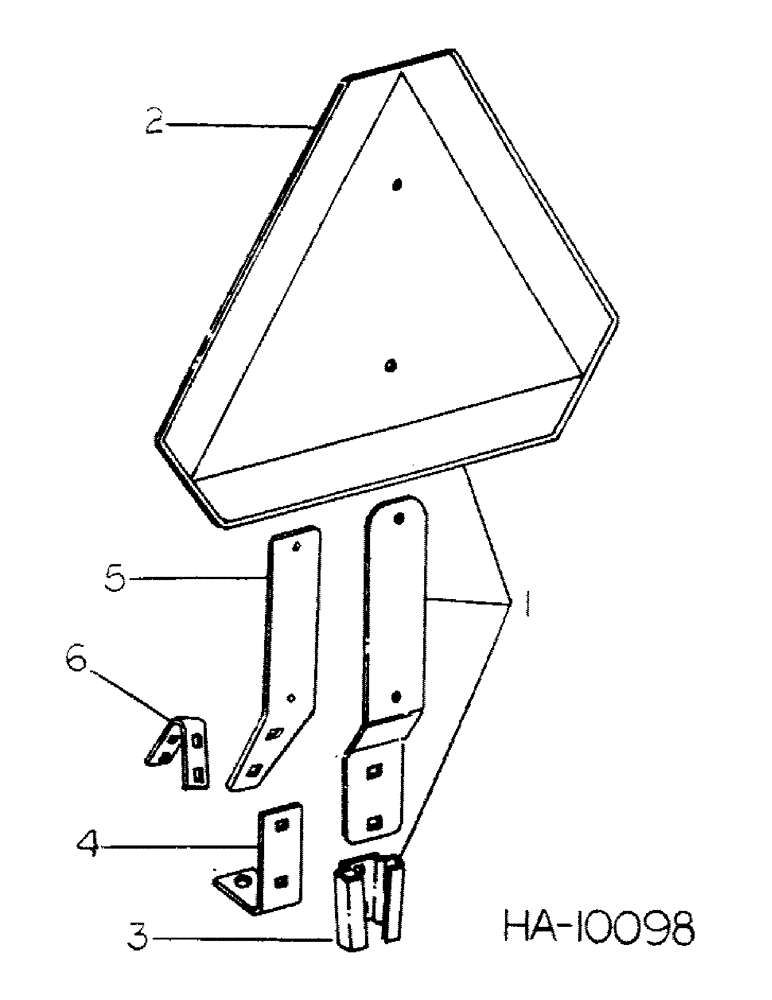

Запчасти Case IH 45 (D-07) - PRODUCT GRAPHICS
№
Артикул
Название
Примечание
Количество
810052C92
KIT
PACKAGE, product graphic service consists of, (1) model designation (NSS), (2) product graphic 810170C1, (2) reflector 175311C1, (1) reflector 174732C1, (1) product graphic 61907C1
1шт.
77583C91
PACKAGE
IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)
1шт.
77582C91
PACKAGE
IH trademark, medium size, consists of, (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)
1шт.
77581C91
PRODUCT GRAPHIC
PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)
1шт.
547495R92
DECAL KIT
PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)
1шт.
547497R92
DECAL
PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)
1шт.
2
407263R1
PRODUCT GRAPHIC,SMV Triangle Yellow Orange
PACKAGE, SMV emblem film kit
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT 5/16 x 3/4 crg type 5
2шт.
