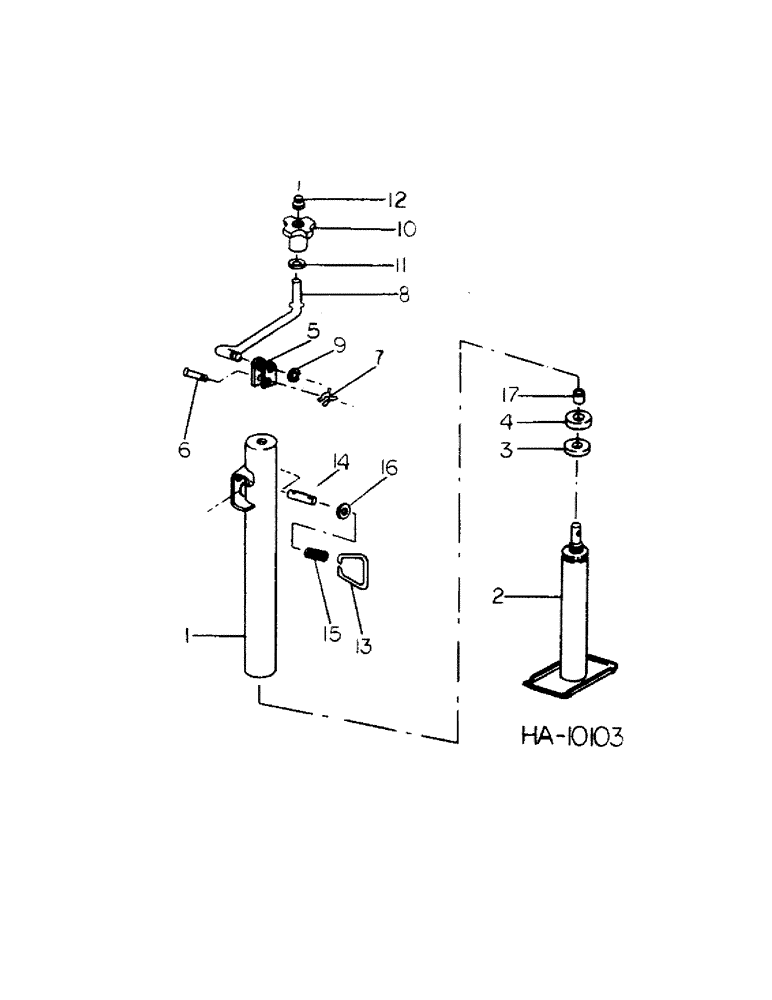

Запчасти Case IH 45 (D-17) - TRACTOR HITCH JACK, BUILT AUGUST, 1976 SEASON & SINCE

813274C91

JACK

ASSY, hitch

1шт.

1

63356C1

TUBE,14.25" Length

hitch outer

1шт.

2

812620C1

TUBE, hitch inner base

1шт.

3

59113C1

THRUST WASHER

thrust

1шт.

4

59111C91

THRUST BEARING

BEARING, thrust

1шт.

5

62844C1

SUPPORT

screw cap

1шт.

6

59106C1

PIN

crank

1шт.

7

277395C1

WASHER, pin X

1шт.

8

62843C1

ROD

hitch jack crank

1шт.

9

62845C1

RING

crank retaining

1шт.

10

62841C1

CRANK

KNOB, crank

1шт.

11

59102C1

WASHER

knob

1шт.

12

62840C1

CAP

knob washer

1шт.

13

204658C1

HOOK, plunger pull ring

1шт.

14

204654C1

PLUNGER

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

1шт.

15

204655C1

SPRING, plunger

1шт.

16

59102C1

WASHER

spring

1шт.

17

SLEEVE, jack screw, not serviced separately, for service order 1-812620C1, inner base tube

1шт.
