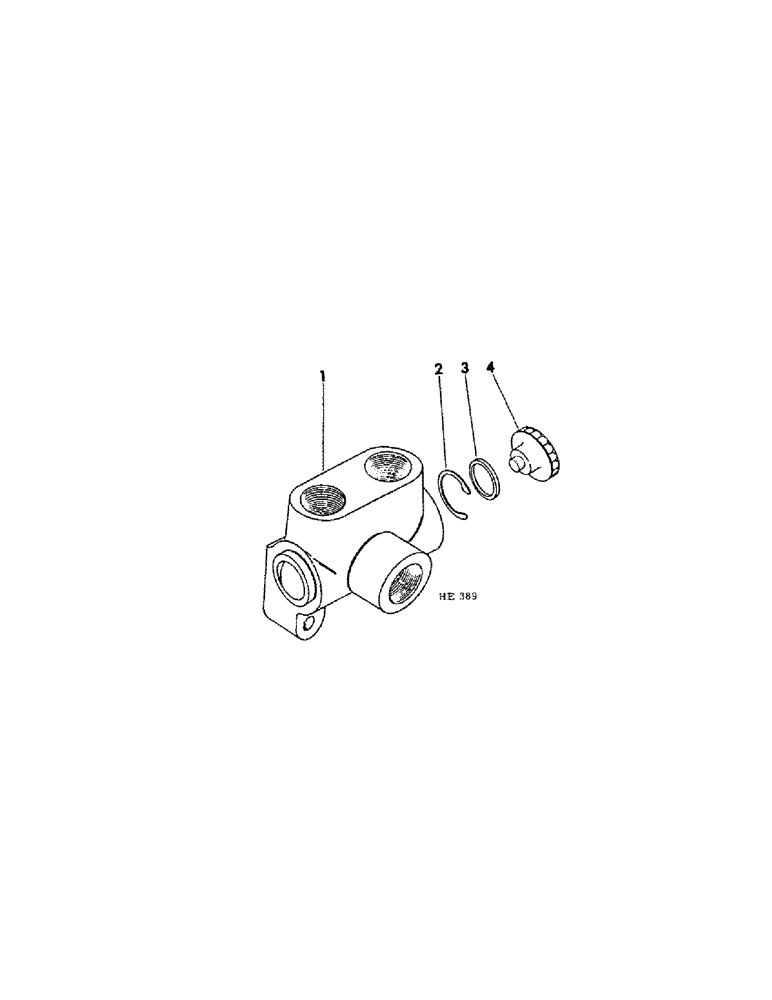

Запчасти Case IH 45 (D-32[A]) - HYDRAULIC DIVERTER VALVE PUSH-PULL TYPE VALVE FOR USE ON 22 FOOT 6 INCH MODEL

1

HOUSING, diverter valve, not serviced separately, for service order 1-598861R91, field conversion package

1шт.

2

661652R1

SNAP RING,#75, Ext

Valve #75, Ext

2шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

diverter valve

2шт.

4

384283R1

KNOB

valve control

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

598861R91

1шт.

PACKAGE, diverter valve field improvement, consists of, (1) angle 598158R1, (2) bolt 180073, (2) bolt 180075, (2) bolt 180175, (2) nut 120376, (2) nut 120378, (1) o-ring 364885R1, (1) plug 9410360, (1) reducer 610774R1, (1) tube assy 598159R1, (2) union 481352R1, (2) union 9402683, (1) valve 598157R91

1шт.
