(D-32) - WING FRAME TRUSS ROD, 31 FOOT 6 INCH MODEL BUILT PRIOR TO AUGUST 1976 SEASON

Запчасти Case IH 45 (D-32) - WING FRAME TRUSS ROD, 31 FOOT 6 INCH MODEL BUILT PRIOR TO AUGUST 1976 SEASON

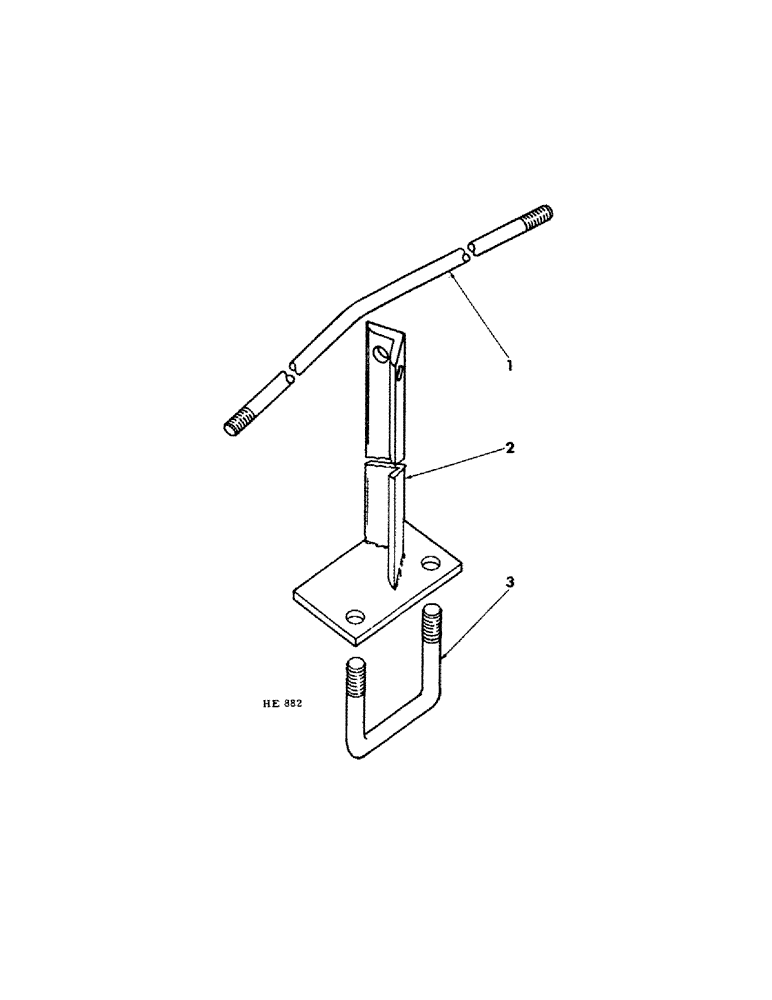

Схема запчастей Case IH 45 - (D-32) - WING FRAME TRUSS ROD, 31 FOOT 6 INCH MODEL BUILT PRIOR TO AUGUST 1976 SEASON
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

811219C1

ROD

wing frame truss

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

811221C1

MAST ASSY, truss rod LH

1шт.

811220C1

MAST ASSY, truss rod RH

1шт.

3

591609R1

BOLT

U-BOLT, truss rod mast support

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

VALVE ASSY, hydraulic diverter, for service of the complete valve order 1-598861R91, package

1шт.
