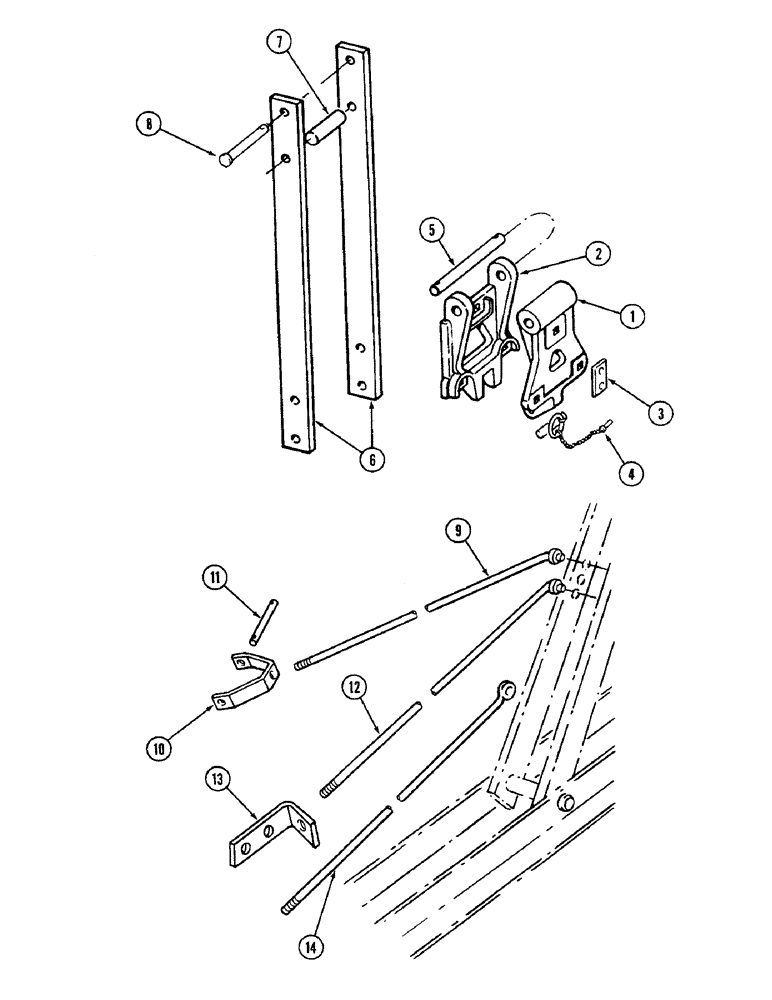

Запчасти Case IH 4500 (9-006) - C FRAME EXTENSION HINGES AND TRUSS, RODS, DIRECT MOUNTED MODELS (09) - CHASSIS/ATTACHMENTS

1

591606R1

BRACKET

- extension outer hinge

4шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

4шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

2

591605R1

HINGE

BRACKET - extension hinge, inner

4шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

3

591635R1

LOCKING PLATE

- hinge lock pin anchor

4шт.

PO21281

PLOW BOLT,1/2" - 13 x 1 3/4", Gr 5

BOLT - flat head square neck, 1/2 NC x 1-3/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

375893R91

AXLE PIN

PIN - outer hinge lock

4шт.

5

591633R1

AXLE PIN

PIN - hinge front, 8 foot 6 inch basic size

2шт.

5

591631R1

AXLE PIN

PIN - hinge,front, 12 foot 6 inch basic size

2шт.

5

591633R1

AXLE PIN

PIN - hinge, rear

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

6

591634R1

BAR

- extension support

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

23372S

SPACER,1/2" Pipe x 2 9/16"

- support bar, 1/2 x 2-9/16 inch

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

23172R1

PIN

- headed, 1/2 x 3-3/4 inch

2шт.

1978738C1

HAIR PIN COTTER

quick attachable

2шт.

9

811197C1

ROD

- frame front truss, 12 foot 6 inch basic size and larger

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, 12 foot 6 inch basic size and larger

4шт.

10

591630R1

BRACKET

SUPPORT - truss rod, 12 foot 6 inch basic size and larger

2шт.

11

591631R1

AXLE PIN

PIN - truss rod hinge, 12 foot 6 inch basic size and larger

2шт.

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), , 12 foot 6 inch basic size and larger 1/4" x 1 1/4"

4шт.

12

596590R11

ROD

ASSEMBLY - frame rear truss (See Note A), 12 foot 6 inch basic size and larger

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, 12 foot 6 inch basic size and larger

4шт.

13

596591R1

SUPPORT

- truss rod, left (See Note A), 12 foot 6 inch basic size and larger

1шт.

13

596592R1

SUPPORT

- truss rod, right (See Note A), 12 foot 6 inch basic size and larger

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch, 12 foot 6 inch basic size and larger

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 12 foot 6 inch basic size and larger 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 12 foot 6 inch basic size and larger 1/2"-13, G5

4шт.

14

810369C1

ROD

- frame rear truss (See Note B), 12 foot 6 inch basic size and larger

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, 12 foot 6 inch basic size and larger

4шт.
