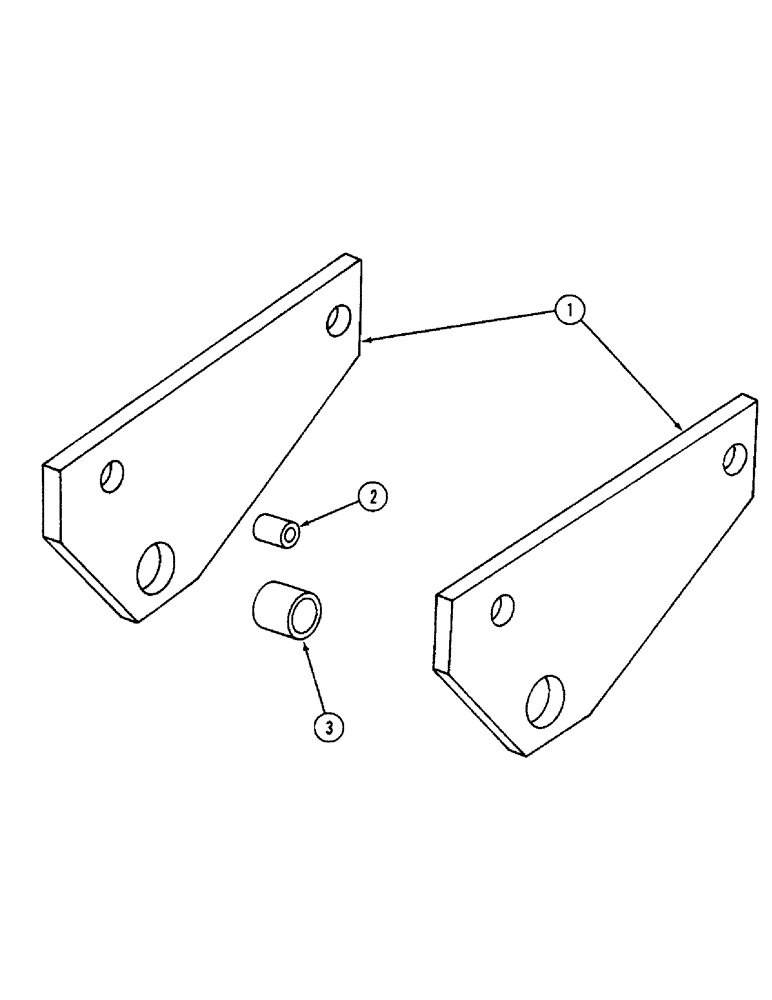

Запчасти Case IH 4500 (9-012) - QUICK COUPLER HITCH ADAPTOR, DIRECT MOUNTED MODELS, 12 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

597807R1

PLATE

- adapting

2шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch (Machine built prior to March 1980)

1шт.

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch (Machines built March 1980 and after)

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

2

PO27260

SPACER,1" Pipe x 2"

- hitch connecting bar, 2 inch long

1шт.

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

1шт.

492-11100

LOCK WASHER,1"

1"

1шт.

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

1шт.

3

597802R1

SPACER

BUSHING - adaptor plate, 3-19/64 inch long (Machines built prior to March 1980)

1шт.

3

812693C1

BUSHING

- adaptor plate, 3-1/2 inch long (Machines built March 1980 and after)

1шт.

426-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

- hex, 1 NC x 6 inch

1шт.

492-11100

LOCK WASHER,1"

1"

1шт.

429-1016

NUT,1"-8, G8

1шт.
