(9-018) - TRAILING HITCH, DIRECT MOUNTED MODELS

Запчасти Case IH 4500 (9-018) - TRAILING HITCH, DIRECT MOUNTED MODELS (09) - CHASSIS/ATTACHMENTS

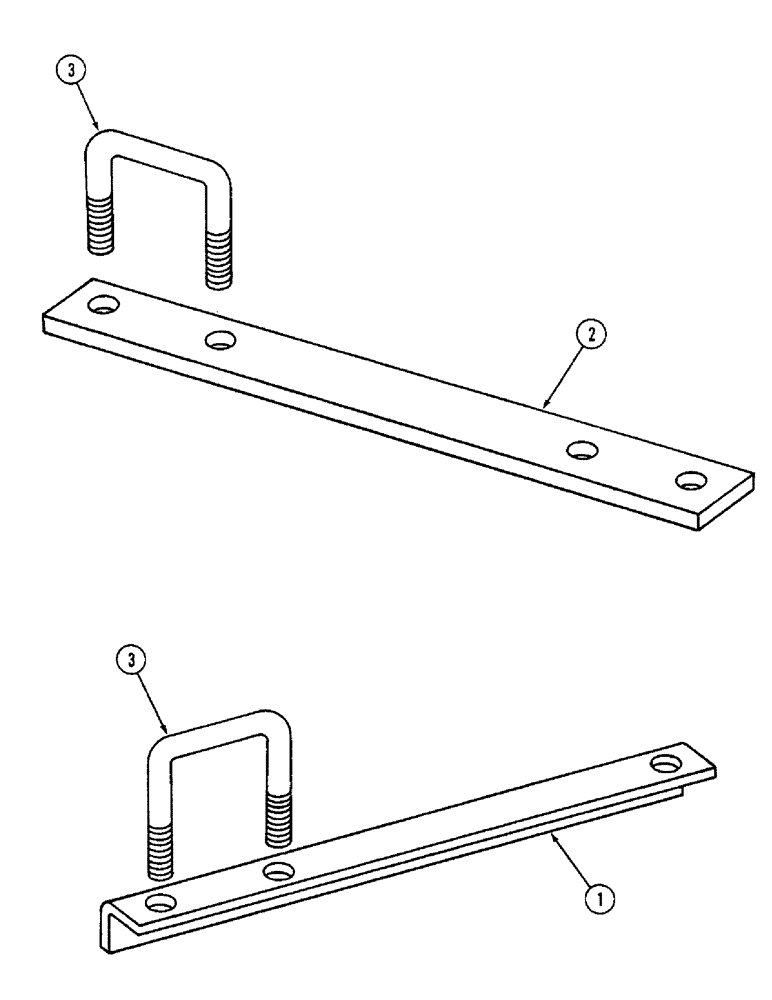

Схема запчастей Case IH 4500 - (9-018) - TRAILING HITCH, DIRECT MOUNTED MODELS (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

591653R2

ANGLE

- hitch

1шт.

2

591654R1

BAR

- hitch

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

3

592406R1

BOLT,U, 3/4" - 10 x 4.62"

U-BOLT - hitch clamping

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
