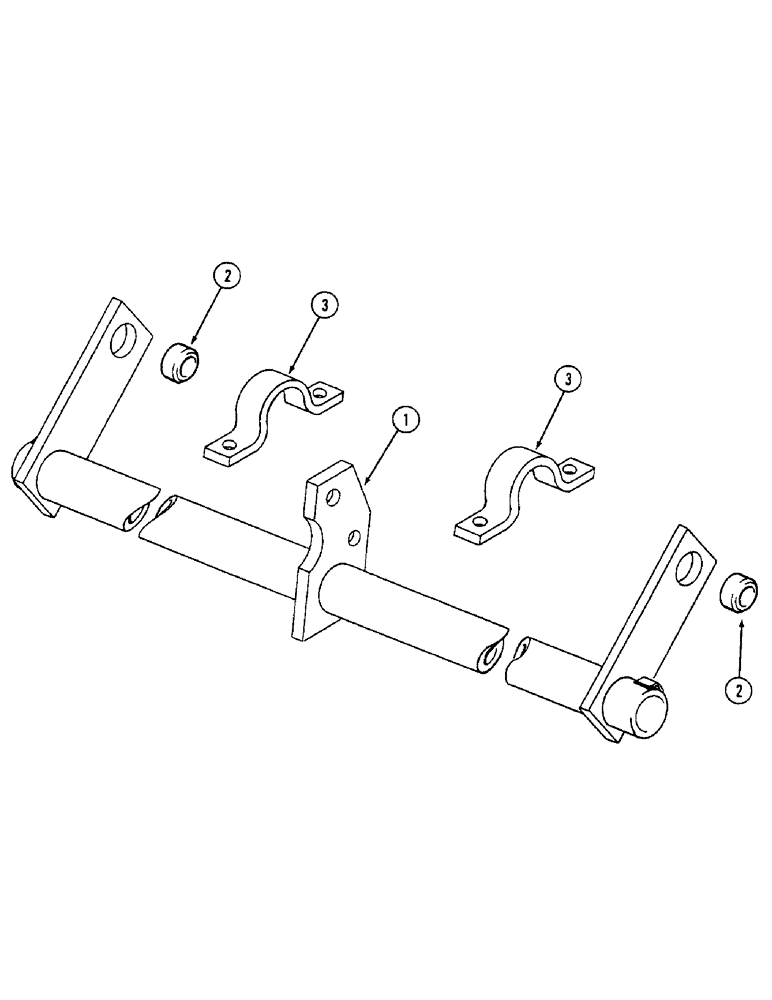

Запчасти Case IH 4500 (9-046) - DEPTH CONTROL ROCKSHAFT, TRAIL BEHIND MODELS, 8 FOOT 6 INCH BASIC SIZE (09) - CHASSIS/ATTACHMENTS

1

813282C92

ROCKSHAFT

ASSEMBLY - main frame

1шт.

2

591525R1

BUSHING

- rockshaft outer arm

2шт.

3

811038C2

CLAMP

- rockshaft

4шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

4шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

121547

PIN

- clevis, 3/16 x 37/64 inch

8шт.

1

811016C94

ROCKSHAFT

ASSEMBLY - main frame, 12 foot 6 inch basic size

1шт.

2

591525R1

BUSHING

- rockshaft outer arm, 12 foot 6 inch basic size

2шт.

3

811038C2

CLAMP

- rockshaft, 12 foot 6 inch basic size

6шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch, 12 foot 6 inch basic size

6шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, 12 foot 6 inch basic size

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 12 foot 6 inch basic size 5/8"

12шт.

425-1010

NUT,5/8"-11, G5

12 foot 6 inch basic size 5/8"-11, G5

12шт.

121547

PIN

- clevis, 3/16 x 37/64 inch, 12 foot 6 inch basic size

12шт.
