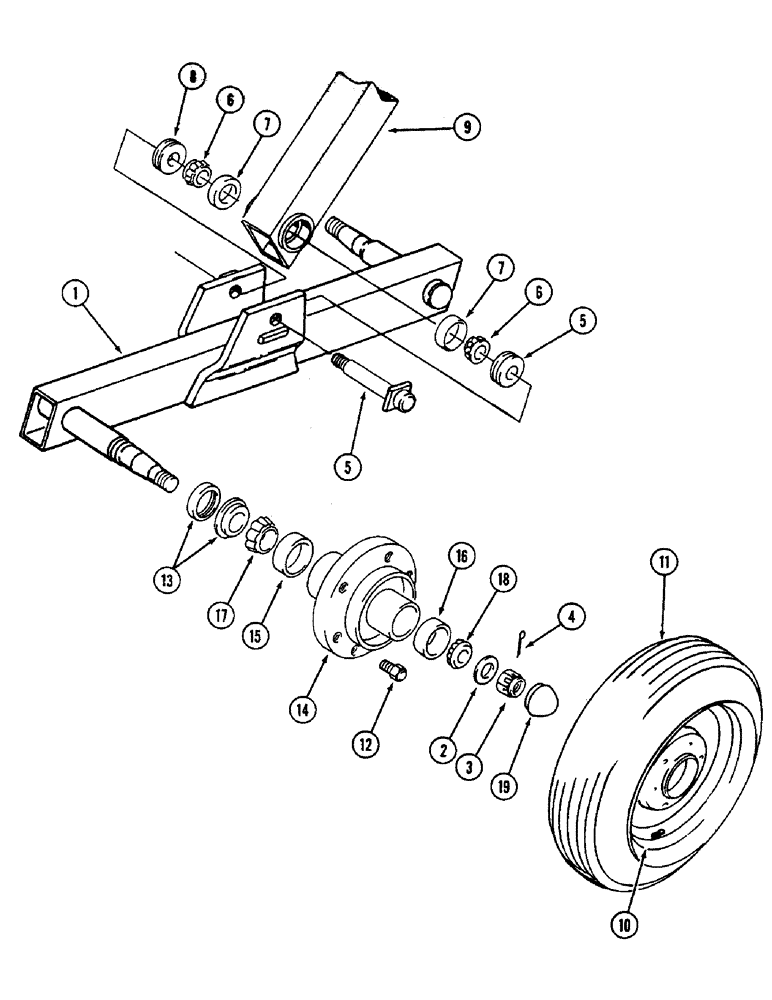

Запчасти Case IH 4500 (9-068) - MAIN FRAME AXLE, WHEEL AND HUB, WING TYPE MODELS (09) - CHASSIS/ATTACHMENTS

1

1284064C92

TUBE NUT

AXLE ASSEMBLY - main frame, left and right (Replaces 811396C91 left axle and 811397C91 right axle)

1шт.

P/QC comments: Per the 4900 Tiller book, The Spindle Replacement is P?n 95961C1.

1шт.

2

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

3

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

4

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

5

813121C1

STUD

STUD - axle pivot

1шт.

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NF

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

6

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing

2шт.

7

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing

2шт.

8

813159C2

SEAL

ASSEMBLY - axle pivot

2шт.

9

REF

INSTRUCTION

ROCKSHAFT ASSEMBLY - main frame (See page 9-75)

1шт.

10

811389C1

RIM

WHEEL - 14 x 6 inch KB

1шт.

11

TIRE - 8.50L - 14, 4 ply, tubeless

1шт.

810768C1

VALVE

- tubeless tire, steel

1шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex , conical, 1/2 NF x 1-1/2 inch

6шт.

13

606556R91

OIL SEAL

SEAL ASSEMBLY - oil, with wear sleeve

1шт.

14

606468R21

HUB

ASSEMBLY - wheel

1шт.

15

663558R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

16

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, outer

1шт.

17

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, inner

1шт.

18

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, outer

1шт.

19

663906R1

CAP

- wheel hub

1шт.

811382C1

PACKAGE

- tire valve guard (Includes 12 guards and fitting instructions)

1шт.
