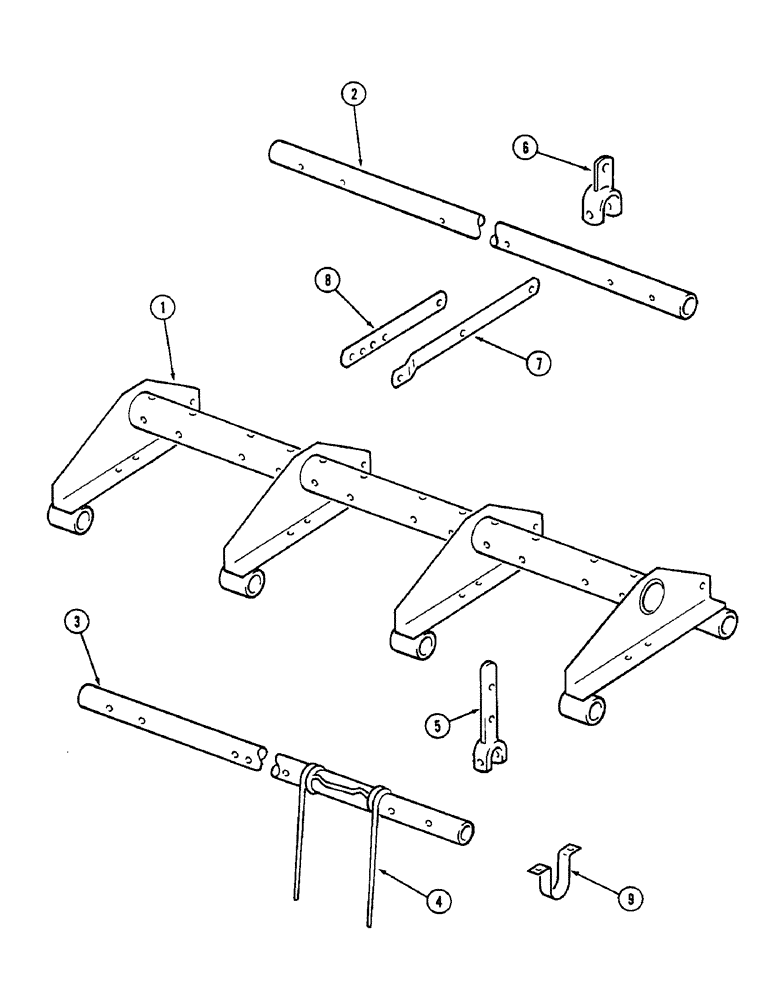

Запчасти Case IH 4500 (9-084) - TOOLING EQUIPMENT, 9 FOOT 9 INCH THROUGH 14 FOOT 9 INCH MULCHERS, 2 BAR 9 FOOT 9 INCH MULCHERS (09) - CHASSIS/ATTACHMENTS

1

813020C1

FRAME ASSEMBLY - mulchers

1шт.

2

813027C1

TUBE,1.66" OD, 113.875" Length

- front tooth bar

1шт.

3

813033C1

TUBE,1.66" OD, 113.875" Length

- rear tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring

16шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

32шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

32шт.

1

813021C1

FRAME ASSEMBLY - mulchers, 12 foot 3 inch

1шт.

2

813028C1

TUBE,1.66" OD, 143.875" Length

- front tooth bar, 12 foot 3 inch mulchers

1шт.

3

813034C1

TUBE - rear tooth bar, 12 foot 3 inch mulchers 1.66" OD, 143.875" Length

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 12 foot 3 inch mulchers 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring, 12 foot 3 inch mulchers

20шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 12 foot 3 inch mulchers

40шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 12 foot 3 inch mulchers

40шт.

1

813021C1

FRAME ASSEMBLY - mulchers (No Longer Available), 14 foot 9 inch

1шт.

2

813029C1

TUBE,1.66" OD, 173.875" Length

- front tooth bar, 14 foot 9 inch mulchers

1шт.

3

813035C1

TUBE,1.66" OD, 173.875" Length

- rear tooth bar, 14 foot 9 inch mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 14 foot 9 inch mulchers 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

- spring, 14 foot 9 inch mulchers

24шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 14 foot 9 inch mulchers

48шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 14 foot 9 inch mulchers

48шт.

5

485592R1

ARM

HANDLE ASSEMBLY - frame (See Note A), all mulcher sizes

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch (See Note A), all mulcher sizes

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC (See Note A), all mulcher sizes

1шт.

6

485601R1

ARM

POST ASSEMBLY - front tooth bar (See Note A), all mulcher sizes

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch (See Note A), all mulcher sizes

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC (See Note A), all mulcher sizes

1шт.

7

485593R1

SUPPORT

BRACE - handle reach (See Note A), all mulcher sizes

1шт.

8

485594R1

BAR

- adjusting reach (See Note A), all mulcher sizes

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - headed, 7/16 x 1 inch (See Note A), all mulcher sizes

4шт.

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1 x 3/64 inch (See Note A), all mulcher sizes

3шт.

432-1016

COTTER PIN,5/32" x 1"

(See Note A), all mulcher sizes 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable (See Note A), all mulcher sizes

1шт.

9

813036C1

CLAMP

- tooth bar tube, all mulcher sizes

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, all mulcher sizes

16шт.

492-11038

LOCK WASHER,3/8"

all mulcher sizes 3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

All mulcher sizes 3/8"-16, G5

2шт.
