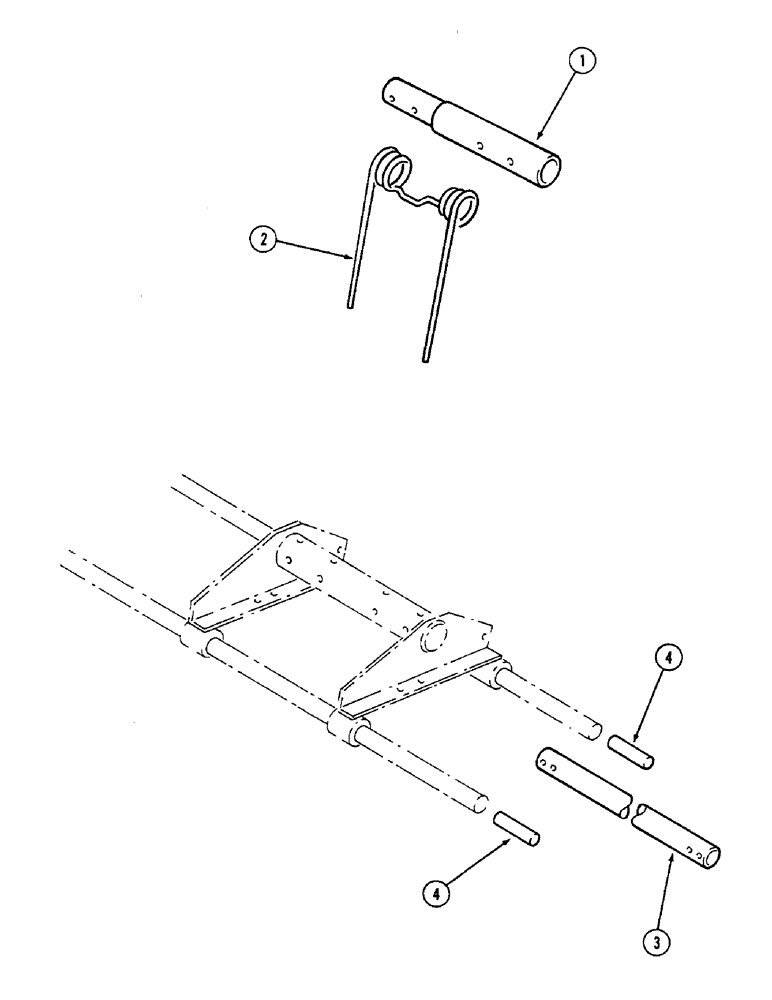

Запчасти Case IH 4500 (9-090) - TOOLING EQUIPMENT, MULCHER EXTENSION AND MULCHER SPANNER, 1 FOOT 3 INCH MULCHER EXTENSION, 3 BAR (09) - CHASSIS/ATTACHMENTS

1

487777R1

TUBE

- tooth bar extension

3шт.

2

72901C1

TOOTH

- spring

3шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

6шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

6шт.

3

548393R1

TUBE

- spanner, for the connection of two mulchers

1шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch, spanner - for the connection of two mulchers

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC, spanner - for the connection of two mulchers

2шт.

4

487726R1

TUBE

CONNECTOR - front and rear tooth bars, spanner - for the connection of two mulchers

2шт.
