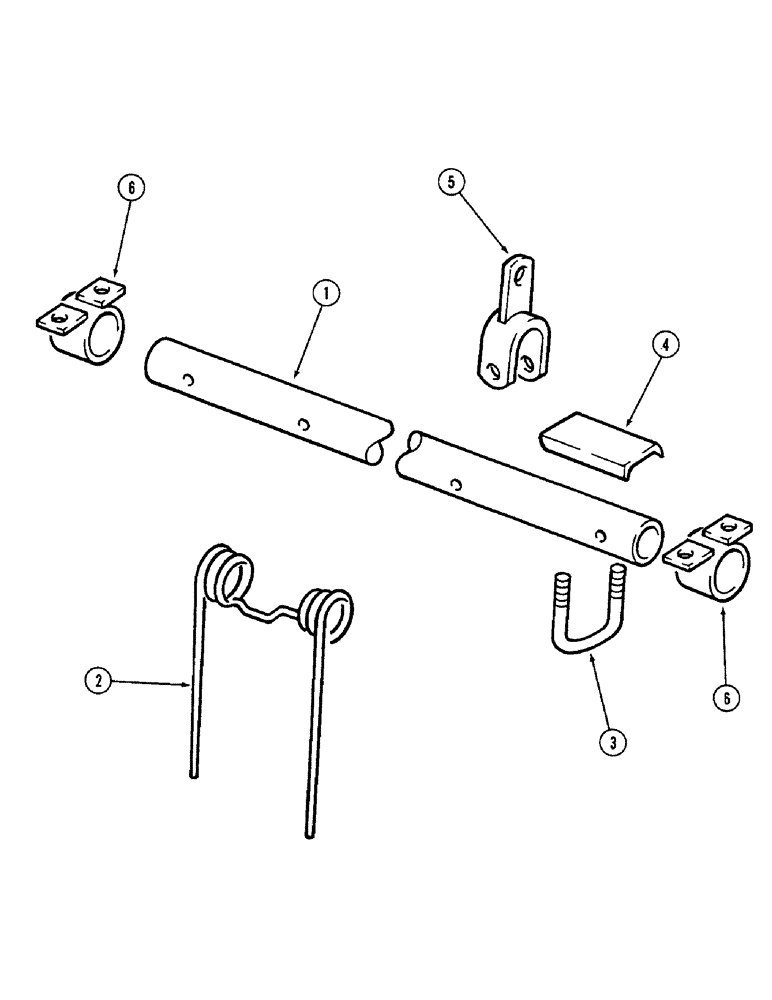

Запчасти Case IH 4500 (9-092) - TOOLING EQUIP., 2 FT. 3 IN. AND 3 FT. 6 IN. MULCHERS, CENTER BAR, 2 FT. 6 IN. MULCHERS, HINGE TYPE (09) - CHASSIS/ATTACHMENTS

1

547851R1

BAR

TUBE - center tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

4шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

4шт.

3

547854R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT - tube clamping

2шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

4

547853R1

CLAMP

- tube

1шт.

1

547852R1

TUBE

- center tooth bar, 3 foot 6 inch mulchers - hinge type

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 3 foot 6 inch mulchers - hinge type 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 3 foot 6 inch mulchers - hinge type

3шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 3 foot 6 inch mulchers - hinge type

6шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 3 foot 6 inch mulchers - hinge type

6шт.

3

547854R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT - tube clamping, 3 foot 6 inch mulchers - hinge type

4шт.

492-11038

LOCK WASHER,3/8"

3 foot 6 inch mulchers - hinge type 3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

3 foot 6 inch mulchers - hinge type 3/8"-16, G5

8шт.

4

547853R1

CLAMP

- tube, 3 foot 6 inch mulchers - hinge type

2шт.

1

485602R1

TUBE

- center tooth bar, 3 foot 6 inch mulchers - non hinge type

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 3 foot 6 inch mulchers - non hinge type 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 3 foot 6 inch mulchers - non hinge type

3шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 3 foot 6 inch mulchers - non hinge type

6шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 3 foot 6 inch mulchers - non hinge type

6шт.

5

485601R1

ARM

POST ASSEMBLY - center, 3 foot 6 inch mulchers - non hinge type

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch, 3 foot 6 inch mulchers - non hinge type

1шт.

432-1016

COTTER PIN,5/32" x 1"

3 foot 6 inch mulchers - non hinge type 5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, 3 foot 6 inch mulchers - non hinge type

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, 3 foot 6 inch mulchers - non hinge type

1шт.

6

485603R1

BUSHING

ASSEMBLY - center bar, 3 foot 6 inch mulchers - non hinge type

2шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, 3 foot 6 inch mulchers - non hinge type

4шт.

492-11038

LOCK WASHER,3/8"

3 foot 6 inch mulchers - non hinge type 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

3 foot 6 inch mulchers - non hinge type 3/8"-16, G5

4шт.
