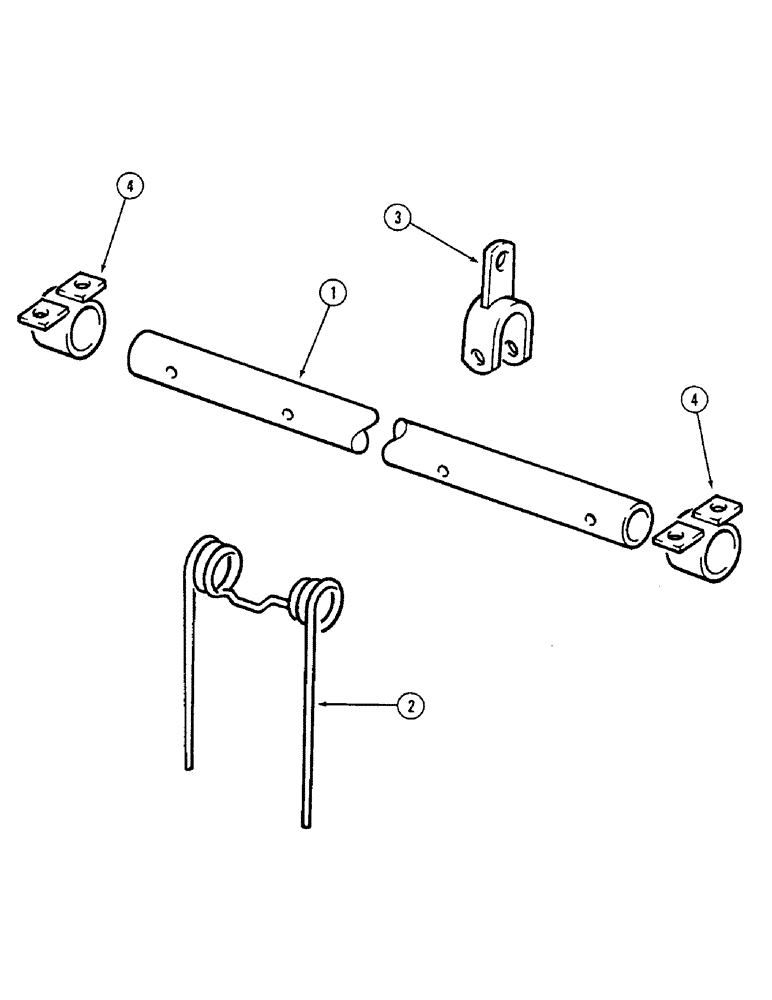

Запчасти Case IH 4500 (9-094) - TOOLING EQUIPMENT, 4 FOOT 9 INCH THRU 7 FOOT 3 INCH MULCHERS, CENTER BAR, 4 FOOT 9 INCH MULCHERS (09) - CHASSIS/ATTACHMENTS

1

485604R1

TUBE

- center tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring

4шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

8шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

8шт.

3

485601R1

ARM

POST ASSEMBLY - center

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC

1шт.

4

485603R1

BUSHING

ASSEMBLY - center bar

2шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

1

485605R1

TUBE

- center tooth bar, 6 foot mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 6 foot mulchers 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 6 foot mulchers

5шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 6 foot mulchers

10шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 6 foot mulchers

10шт.

3

485601R1

ARM

POST ASSEMBLY - center, 6 foot mulchers

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch, 6 foot mulchers

1шт.

432-1016

COTTER PIN,5/32" x 1"

6 foot mulchers 5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, 6 foot mulchers

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, 6 foot mulchers

1шт.

4

485603R1

BUSHING

ASSEMBLY - center bar, 6 foot mulchers

2шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, 6 foot mulchers

4шт.

492-11038

LOCK WASHER,3/8"

6 foot mulchers 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

6 foot mulchers 3/8"-16, G5

4шт.

1

490552R1

TUBE

- center tooth bar, 7 foot 3 inch mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 7 foot 3 inch mulchers 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 7 foot 3 inch mulchers

6шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 7 foot 3 inch mulchers

12шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 7 foot 3 inch mulchers

12шт.

3

485601R1

ARM

POST ASSEMBLY - center, 7 foot 3 inch mulchers

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch, 7 foot 3 inch mulchers

1шт.

432-1016

COTTER PIN,5/32" x 1"

7 foot 3 inch mulchers 5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, 7 foot 3 inch mulchers

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, 7 foot 3 inch mulchers

1шт.

4

485603R1

BUSHING

ASSEMBLY - center bar, 7 foot 3 inch mulchers

2шт.

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, 7 foot 3 inch mulchers

4шт.

492-11038

LOCK WASHER,3/8"

7 foot 3 inch mulchers 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

7 foot 3 inch mulchers 3/8"-16, G5

4шт.
