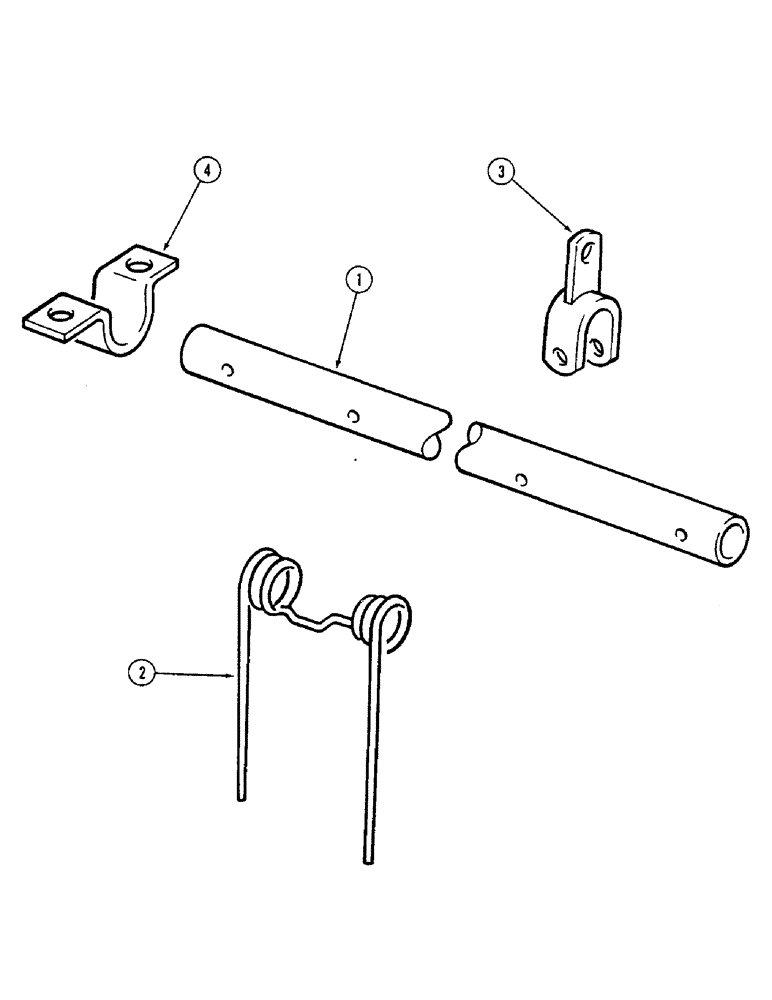

Запчасти Case IH 4500 (9-096) - TOOLING EQUIP., 9 FOOT 9 INCH THRU 14 FOOT 9 INCH MULCHERS, CENTER BAR, 9 FOOT 9 INCH MULCHERS (09) - CHASSIS/ATTACHMENTS

1

813030C1

TUBE,1.66" OD, 113.875" Length

- center tooth bar

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring

8шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder)

16шт.

472144R1

NUT

- hex, lock, 3/8 inch NC

16шт.

3

485601R1

ARM

POST ASSEMBLY - center

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC

1шт.

4

813036C1

CLAMP

- tooth bar tube

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

1

813031C1

TUBE - center tooth bar (No Longer Available), 12 foot 3 inch mulchers 1.66" OD, 143.875" Length

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 12 foot 3 inch mulchers 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 12 foot 3 inch mulchers

10шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 12 foot 3 inch mulchers

20шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 12 foot 3 inch mulchers

20шт.

3

485601R1

ARM

POST ASSEMBLY - center, 12 foot 3 inch mulchers

2шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch, 12 foot 3 inch mulchers

2шт.

432-1016

COTTER PIN,5/32" x 1"

12 foot 3 inch mulchers 5/32" x 1"

2шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, 12 foot 3 inch mulchers

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, 12 foot 3 inch mulchers

2шт.

4

813036C1

CLAMP

- tooth bar tube, 12 foot 3 inch mulchers

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, 12 foot 3 inch mulchers

8шт.

492-11038

LOCK WASHER,3/8"

12 foot 3 inch mulchers 3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

12 foot 3 inch mulchers 3/8"-16, G5

8шт.

1

813032C1

TUBE,1.66" OD, 173.875" Length

- center tooth bar (No Longer Available), 14 foot 9 inch mulchers

1шт.

432-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), , 14 foot 9 inch mulchers 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

- spring, 14 foot 9 inch mulchers

12шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Tooth shoulder), 14 foot 9 inch mulchers

24шт.

472144R1

NUT

- hex, lock, 3/8 inch NC, 14 foot 9 inch mulchers

24шт.

3

485601R1

ARM

POST ASSEMBLY - center, 14 foot 9 inch mulchers

2шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - headed, 7/16 x 1-1/2 inch, 14 foot 9 inch mulchers

2шт.

432-1016

COTTER PIN,5/32" x 1"

14 foot 9 inch mulchers 5/32" x 1"

2шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch, 14 foot 9 inch mulchers

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, lock, 7/16 inch NC, 14 foot 9 inch mulchers

2шт.

4

813036C1

CLAMP

- tooth bar tube, 14 foot 9 inch mulchers

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, 14 foot 9 inch mulchers

8шт.

492-11038

LOCK WASHER,3/8"

14 foot 9 inch mulchers 3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

14 foot 9 inch mulchers 3/8"-16, G5

8шт.
