(T-14[A]) - ROUND STANDARD, WITH PIN BREAK AND SLOTTED SHANK

Запчасти Case IH 452 (T-14[A]) - ROUND STANDARD, WITH PIN BREAK AND SLOTTED SHANK

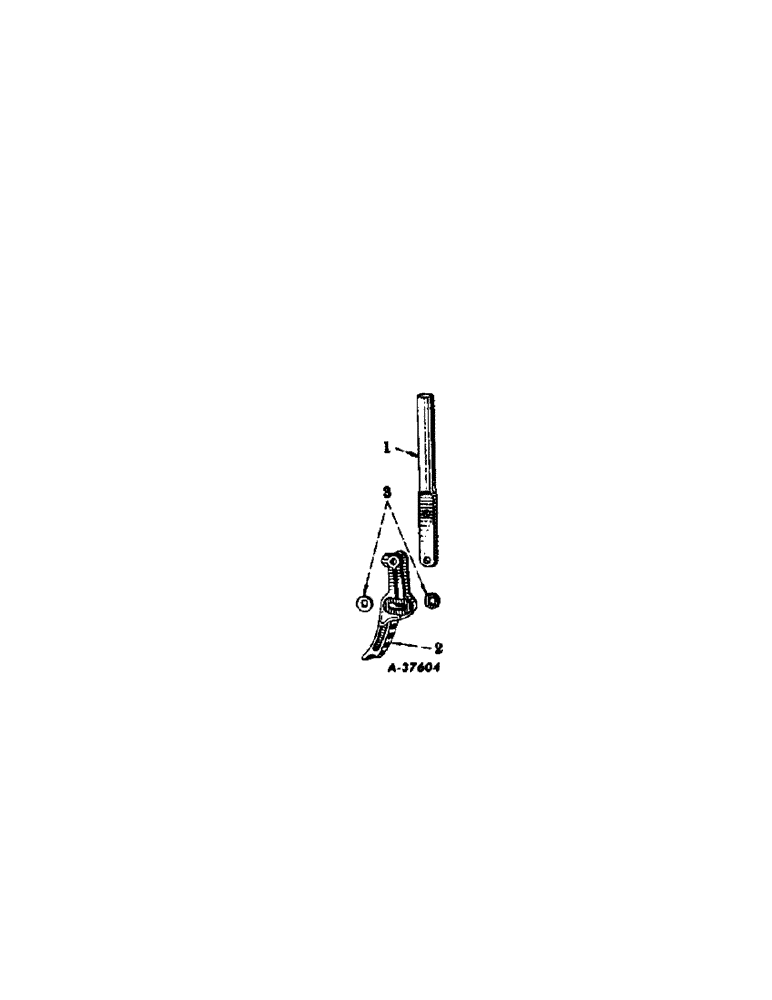

Схема запчастей Case IH 452 - (T-14[A]) - ROUND STANDARD, WITH PIN BREAK AND SLOTTED SHANK
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

521057R1

STANDARD, straight, 1-1/2 x 5/8 in.

1шт.

1

521059R1

STANDARD, 1-1/4 in. dia

1шт.

2

PO701B

SHANK, break-off

1шт.

Z211

PIN, break, wood

1шт.

3

5693

LOCK NUT

WASHER, corrugated

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.
