(A-22[1]) - 4600 VIBRA SHANK, WING TYPE, SLOW MOVING VEHICLE EMBLEM

Запчасти Case IH 4600 (A-22[1]) - 4600 VIBRA SHANK, WING TYPE, SLOW MOVING VEHICLE EMBLEM

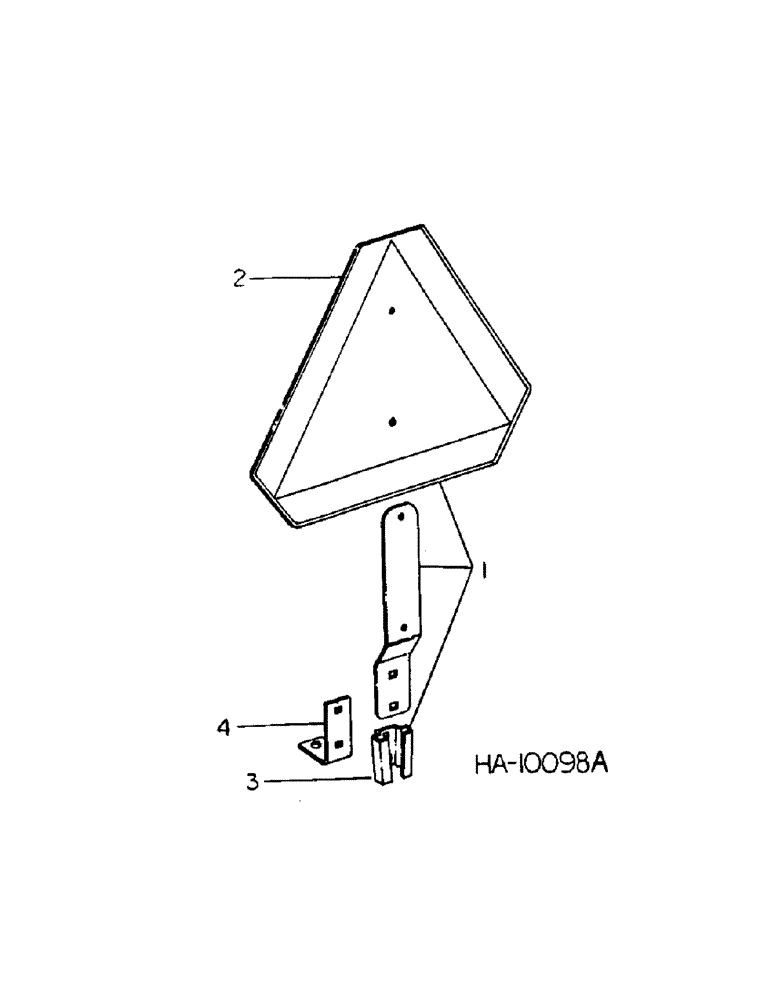

Схема запчастей Case IH 4600 - (A-22[1]) - 4600 VIBRA SHANK, WING TYPE, SLOW MOVING VEHICLE EMBLEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

407220R1

PRODUCT GRAPHIC

PACKAGE, smv emblem, steel, replaces 407218R1

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, smv emblem film kit

1шт.

3

398976R1

BRACKET

smv mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

811324C1

SUPPORT

ANGLE, smv emblem mounting

1шт.
