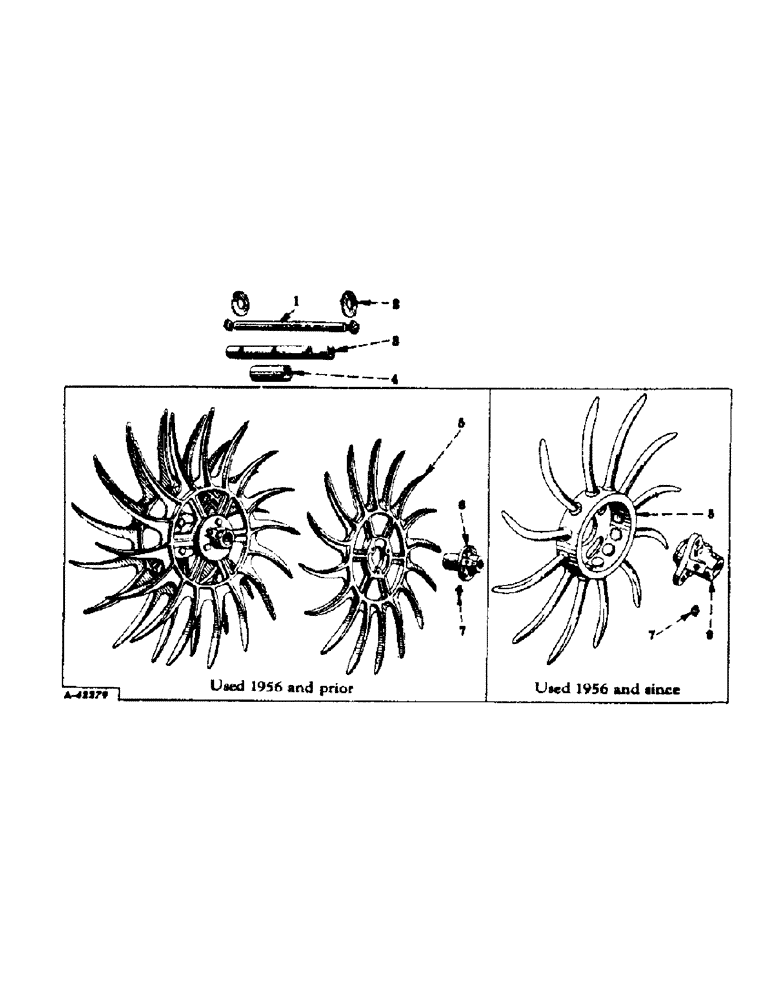

Запчасти Case IH 461 (U-24) - ROTARY WEEDER WHEEL

1

516442R1

SHAFT, wheel

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

552356R1

WASHER

25/32 x 2-1/8 in. x 12 ga

2шт.

2

516447R1

WASHER, wheel hub wear

1шт.

517706R1

SLEEVE, bearing

1шт.

Q216

WASHER

1-1/32 x 1-3/4 in. x 16 ga

3шт.

4

517708R1

SPACER, replace center wheel when weeder is used as a rotary shield

1шт.

5

8620

HYDRAULIC CYLINDER

WHEEL

1шт.

6

517689R1

HUB, wheel

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , In weeder hub 1/8"-27 x .66 lg

1шт.

8

522294R11

WHEEL ASSY, rotary, IZT

1шт.

9

522293R1

HUB, wheel

1шт.

17457R1

BOLT, 3/8 x 1-3/8 in. mach

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

102635

NUT,3/8"-16, G5

3шт.
