(AD-02) - MAIN FRAME

Запчасти Case IH 663 (AD-02) - MAIN FRAME

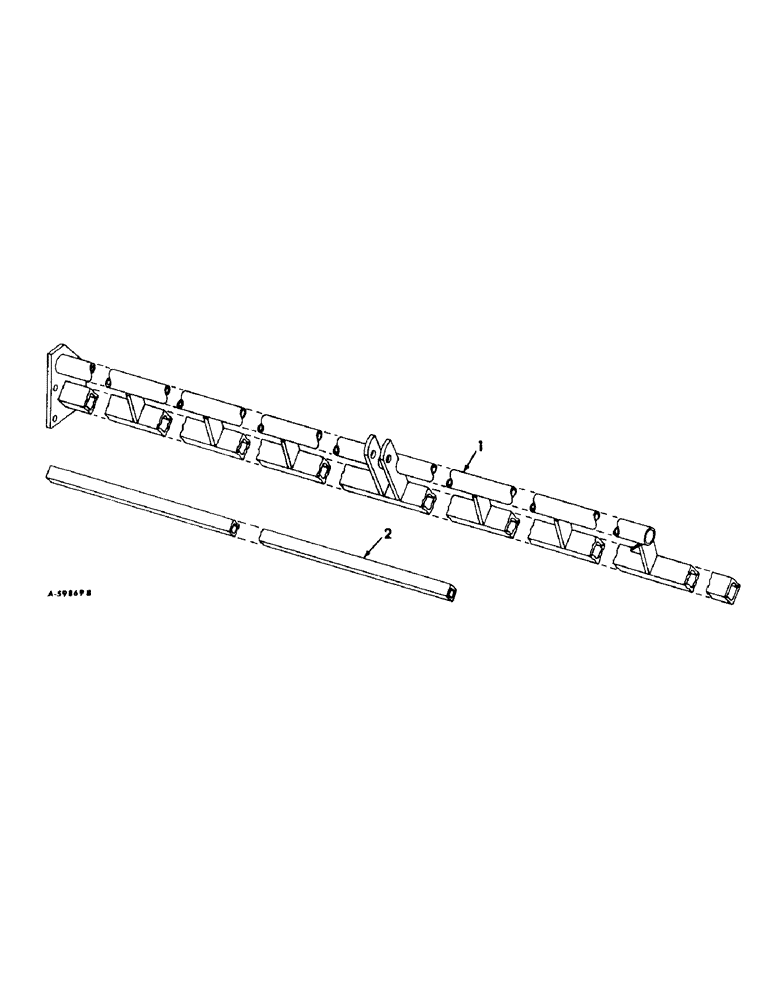

Схема запчастей Case IH 663 - (AD-02) - MAIN FRAME
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

485385R1

FRAME ASSEMBLY, main, 36 to 40 in. spacing, 6 row

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 in. std-hd

2шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

2шт.

2

463440R92

TOOL BAR ASSEMBLY, 24 to 30 in. spacing, 6 row

1шт.

2

526300R91

TOOL BAR ASSEMBLY, 30 in spacing

1шт.

481407R91

TUBE ASSEMBLY, tool bar extension, to increase 663, 24 to 30 in. rows cultivator with 174 in. tool bar to the 190 degree tool bar for cultivating 24 to 30 in. rows

1шт.
