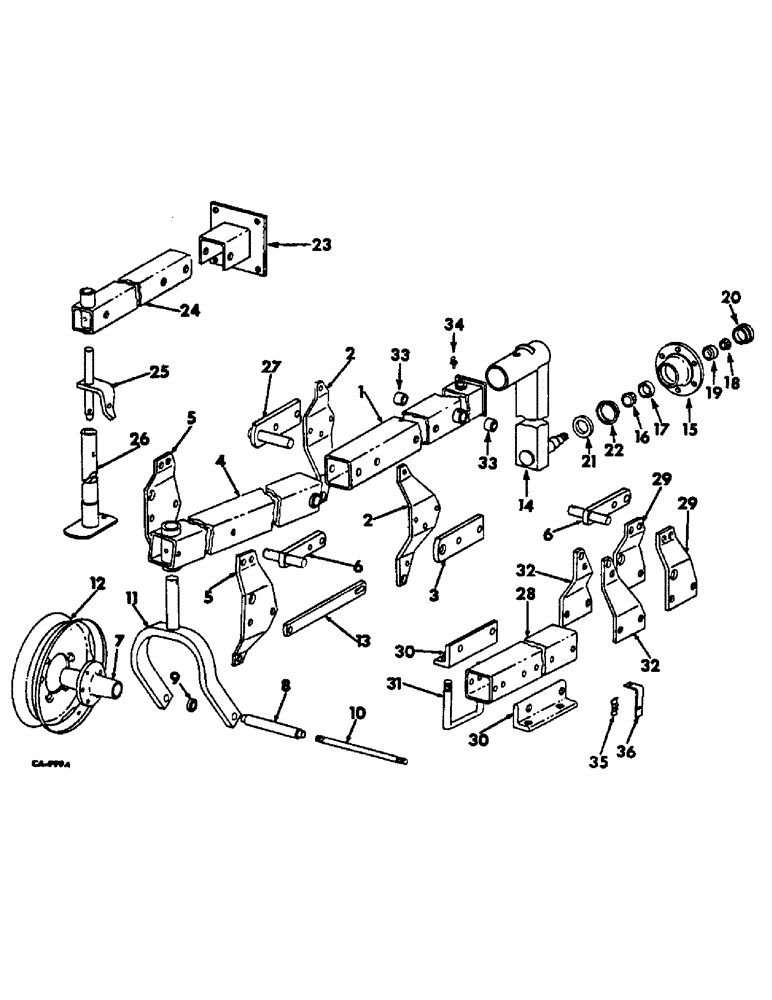

Запчасти Case IH 82-SERIES (B-43) - ASSIST AND TRANSPORT WHEELS, FOR 4, 6 AND 8 ROW LISTERS OR 4 AND 6 ROW TOOL BARS AND MIDDLEBUSTERS

1

541736R2

TUBE ASSY, transprot, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

280954

NUT,3/4"-10, G5

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

541743R1

PLATE, cylinder anchor LH, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

2

541744R1

PLATE, cylinder anchor RH, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

3

541745R1

BAR

ARM, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

1шт.

280954

NUT,3/4"-10, G5

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 znd hex-hd cap

2шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

SCREW, 3/4-10 x 9 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

4

541748R1

TUBE ASSY, assist wheel, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

66584D

FITTING

3/16 drive type str lub, 1 per tube

1шт.

109366

FITTING, 3/16 drive type 30 deg lub, 1 per tube

1шт.

5

541752R1

SUPPORT

PLATE, LH, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

5

541753R1

SUPPORT

PLATE, RH, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

280954

NUT,3/4"-10, G5

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

541754R1

LINK ASSY, cylinder

1шт.

551183R1

WASHER, 1-17/32 x 2-1/2 x 16 ga

2шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4" 5/16" x 2 1/4"

2шт.

541782R1

STOP ASSY, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

541757R1

HUB

wheel, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

8

541758R1

TUBE

SPACER, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

9

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball, 2 per hub

1шт.

591715R1

WASHER

1-1/2 x 1.031 x 16 ga, 2 per hub

1шт.

10

541759R1

ROD

axle, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9849633

NUT,1"-8, G5

2шт.

11

541760R1

ARM ASSY, wheel, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

462997R1

WASHER

wear

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

12

481344R91

WHEEL

1шт.

WHEEL ASSY, 14 in., Recommended tire size 9.50 x 14, 1 for 4 row & 6row narrow, 2 for 6 row wide and 8 row listers with assist wheels, 3 for 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters with assist wheels

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical wheel, 6 per wheel hub, 541757R1

1шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

conical wheel, 6 per wheel hub, 465496R1

1шт.

13

541763R1

LINK, transport, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

2шт.

14

541764R1

AXLE ASSY, wheel, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

541769R1

PIN

pointed

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga c-z

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

15

465496R11

HUB

ASSY, 6-bolt wheel, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

16

663558R1

BEARING CUP

BEARING, wheel hub inner cup, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

17

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

18

651817R1

BEARING CUP

BEARING, wheel hub outer cup, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

19

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

20

663906R1

CAP

hub, For 6 row wide and 8 row listers, 6 & 8 tool bars and middlebusters w/transport wheels

1шт.

21

654674R91

OIL SEAL

wheel hub oil, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

22

654675R1

RING

For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

23

493987R2

PLATE

ASSY, transport, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

493990R1

PIN

3/4 x 6 pointed

2шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

24

493985R1

TUBE

ASSY, hitch, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

66584D

FITTING

3/16 str drive lub

1шт.

25

493991R1

BRACKET

ASSY, pivot, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

483587R1

WASHER

pivot

2шт.

21642R1

PIN, 5/16 x 2-1/2 c-z cot.

1шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

26

493994R1

STAND

ASSY, support, For 6 row wide and 8 row listers, 6 & 8 row tool bars and middlebusters w/transport wheels

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 c-z std-hd

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

27

541746R1

ARM

ASSY, 1 for 4 row & 6 row narrow, 2 for 6 row wide and 8 row listers, 1 for 4 row, 2 for 6 & 8 row tool bars and middlebusters

1шт.

28

541770R1

TUBE, 1 for 4 row & 6 row narrow listers, 4 row tool bars and middlebusters, 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 2 for 6 row wide & 8 row listers, tool bars & middlebusters w/assist wheels & w/o transport wheels

1шт.

543441R1

SPACER, 2 per tube

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap, 2 per tube

1шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 znd hex-hd cap, 2 per tube

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

29

541771R1

1шт.

PLATE, LH, 1 for 4 row & 6 row narrow listers, 4 row tool bars and middlebusters, 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 2 for 6 row wide & 8 row listers, tool bars & middlebusters w/assist wheels & w/o transport wheels

1шт.

29

541772R1

PLATE

1шт.

PLATE, RH, 1 for 4 row & 6 row narrow listers, 4 row tool bars and middlebusters, 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 2 for 6 row wide & 8 row listers, tool bars & middlebusters w/assist wheels & w/o transport wheels

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

1шт.

30

541741R1

ANGLE, assist wheel RH, 2 for 6 row wide & 8 row listers, 6 & 8 row tool bars and middlebusters

1шт.

30

541740R1

ANGLE, assist wheel LH, 2 for 6 row wide & 8 row listers, 6 & 8 row tool bars and middlebusters

1шт.

31

541742R1

BOLT,U, 1" - 8 x 7.84"

U-BOLT, 2 per angle

1шт.

21929R1

NUT,1"-8, G8

1-8 c-z hex.

4шт.

32

541773R1

SUPPORT

1шт.

PLATE, cylinder anchor LH, 1 for 4 row & 6 row narrow listers, 4 row tool bars and middlebusters, 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 2 for 6 row wide & 8 row listers, tool bars & middlebusters w/assist wheels & w/o transport wheels

1шт.

32

541774R1

1шт.

PLATE, cylinder anchor RH, 1 for 4 row & 6 row narrow listers, 4 row tool bars and middlebusters, 6 row wide & 8 row listers, tool bars and middlebusters w/transport wheels, 2 for 6 row wide & 8 row listers, tool bars & middlebusters w/assist wheels & w/o transport wheels

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

33

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

bronze, Used w/tube assy, 541736R2

2шт.

34

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive type lub, Used w/tube assy, 541736R2

1шт.

35

515030R1

CLAMP

hose, 4 for 6 row wide & 8 row listers, 6 & 8 row tool bars and middlebusters

1шт.

18442R1

BOLT, 3/8 x 1-3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

36

541780R1

ANGLE

SUPPORT, hose, 4 for 6 row wide & 8 row listers, 6 & 8 row tool bars and middlebusters

1шт.
