(L-20) - TOOL BAR AND CLAMP, BARRING-OFF DISK ATTACHMENT

Запчасти Case IH A-144 (L-20) - TOOL BAR AND CLAMP, BARRING-OFF DISK ATTACHMENT

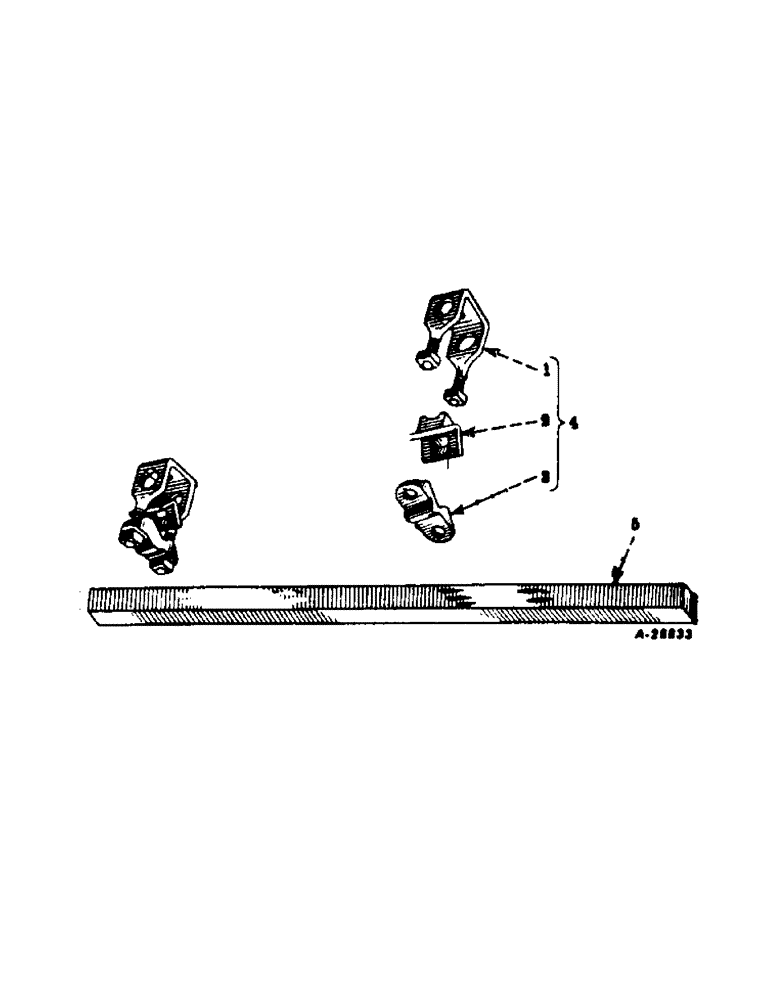

Схема запчастей Case IH A-144 - (L-20) - TOOL BAR AND CLAMP, BARRING-OFF DISK ATTACHMENT
1
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

29600BA

BOLT

U-BOLT, standard clamp

1шт.

102639

NUT,5/8"-11, G5

2шт.

2

1875B

CLAMP

BLOCK, standard clamp

1шт.

3

547750R1

CLAMP

standard

1шт.

4

CLAMP ASSEMBLY, standard, order separately

1шт.

5

517341R1

BAR

spreader, 1-3/8 in. sq, lgth 35 in, for use in conjunction with Farmall Super A, 100, 130, and 140 tractors

1шт.
