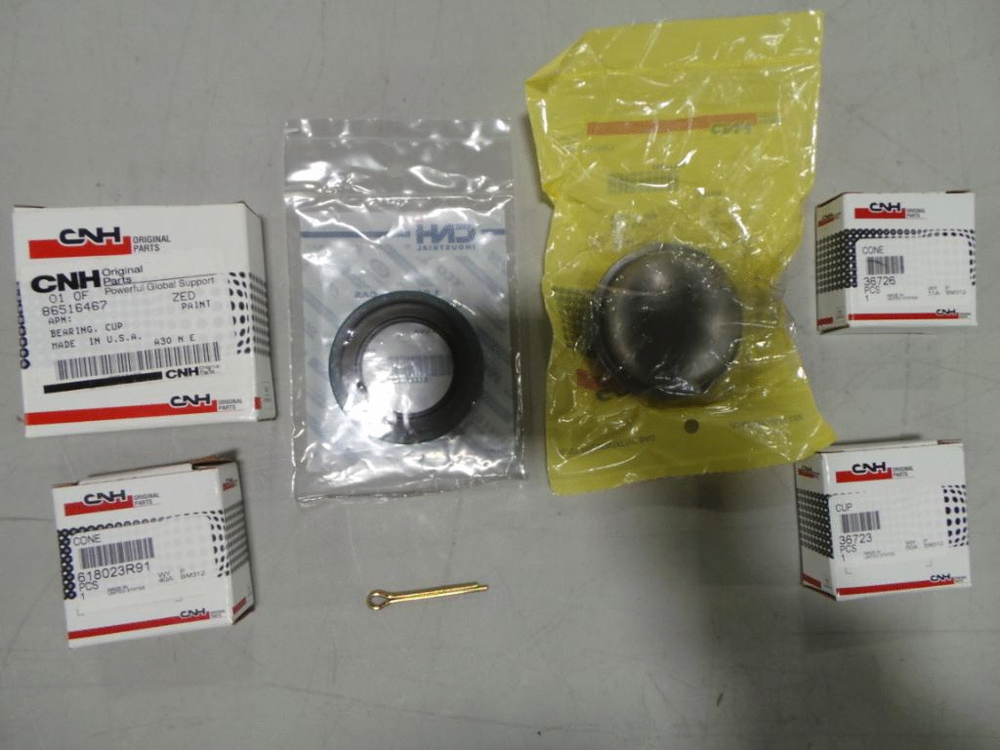

Запчасти Case IH TIGER-MATE (09-09[02]) - KIT HUB BEARING (09) - CHASSIS/ATTACHMENTS

1

47781005

KIT

Includes 2 - 8

1шт.

2

28477700

HUB CAP

1шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

5

86516467

BEARING CUP,65.08mm OD x 13.97mm W

1шт.

6

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

7

614410R91

SEAL

1шт.

8

88350

COTTER PIN,5/32" x 1-1/2"

1шт.
