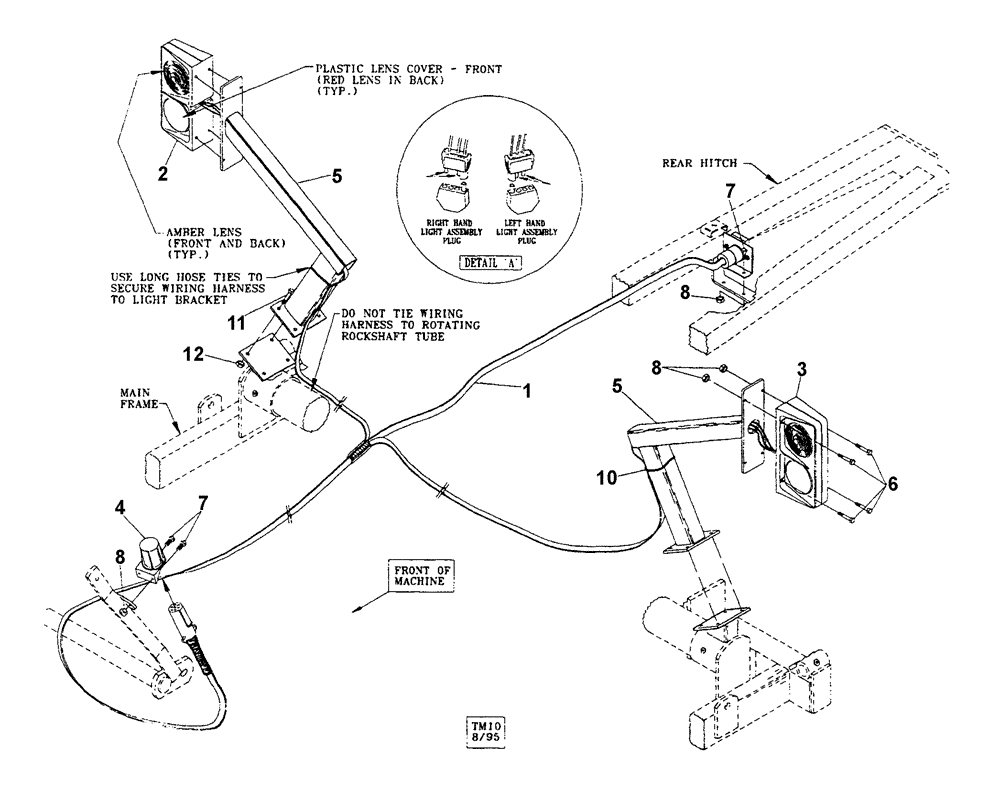

Запчасти Case IH TIGER-MATE (04-01) - WARNING & TAILLIGHT KIT - UNITS WITH SERIAL NUMBER 620044 & AFTER (04) - ELECTRICAL SYSTEMS

1

27601251

WIRE HARNESS

1шт.

2

27601212

LIGHT ASSY.

RH

1шт.

3

27601213

LIGHT ASSY.

LH

1шт.

4

27601214

HOLDER

Plug Storage

1шт.

5

06200210

SUPPORT

Light

2шт.

For Sizes 11-1/2 - 14-1/2, & 28-1/2 - 31-1/2

1шт.

5

06200220

BRACKET

Light

2шт.

For Sizes 16-1/2 - 18-1/2 & 20-1/2 - 27-1/2

1шт.

6

16004055

BOLT

Hex, NC, 1/4"

8шт.

7

NSS

NOT SOLD SEPARAT

Hex Bolt,NC, 1/4" x 3/4"

4шт.

8

NSS

NOT SOLD SEPARAT

Hex Lock Nut, NC, 1/4"

12шт.

9

NSS

NOT SOLD SEPARAT

Plastic Hose Tie 11"

1шт.

10

NSS

NOT SOLD SEPARAT

Plastic Hose Tie , 28"

1шт.

11

NSS

NOT SOLD SEPARAT

Hex Bolt, NC, 5/16" x 1"

8шт.

12

NSS

NOT SOLD SEPARAT

Hex Lock Nut, NC, 5/16"

8шт.
