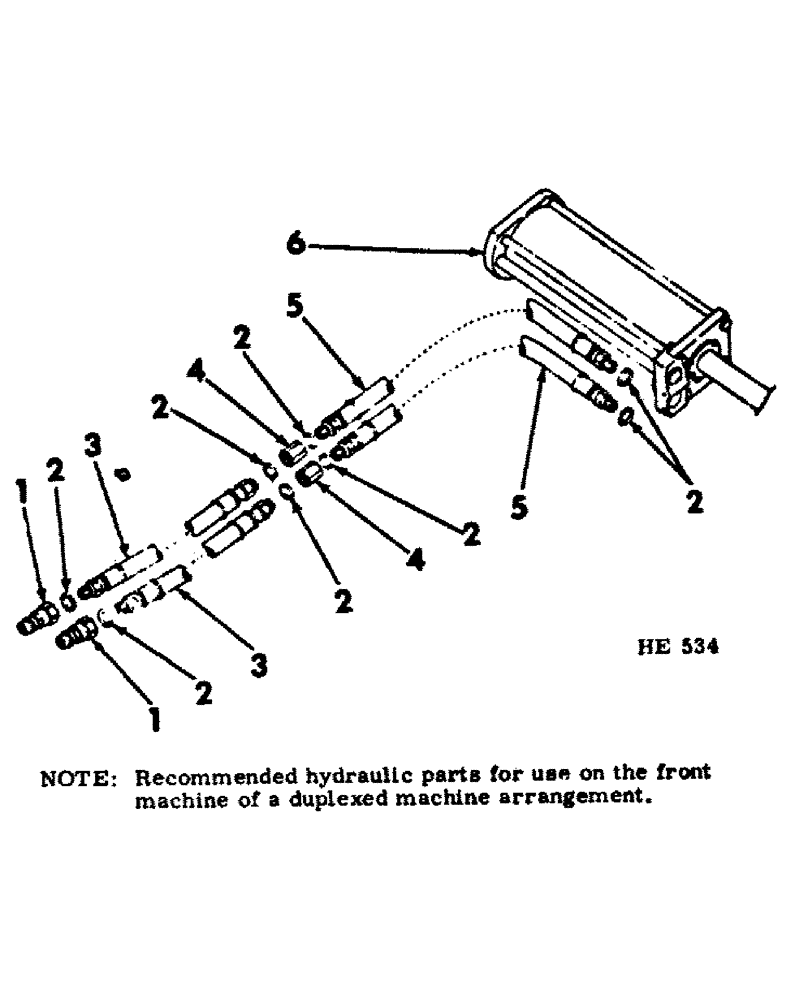

Запчасти Case IH 300 (10-37) - HYDRAULIC CONNECTIONS (ALTERNATE ARRANGEMENT), (TRACTOR TO

1

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd hose

8шт.

3

372437R91

HOSE

1/2 x 112" long hyd

2шт.

4

584802R1

CONNECTOR, ELEC

UNION, hyd hose adapter

2шт.

5

461165R91

HOSE, 1/2 x 66" long hyd

2шт.

6

371292R92

HYDRAULIC CYLINDER

CYLINDER, 3-1/2 x 8" remote control hyd (For use w/tractors equipped w/1500 PSI hyd system & lower) (For component part of this assembly, refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.

6

403842R91

CYLINDER, 3-1/2 x 8" remote control hyd (For use w/tractors equipped w/2000 PSI hyd system & higher) (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.

6

546719R91

CYLINDER

3-1/2 x 8" D.A. remote control (For use on tractors w/hyd systems rated up to 2500 PSI) (For component parts of this assembly refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.
