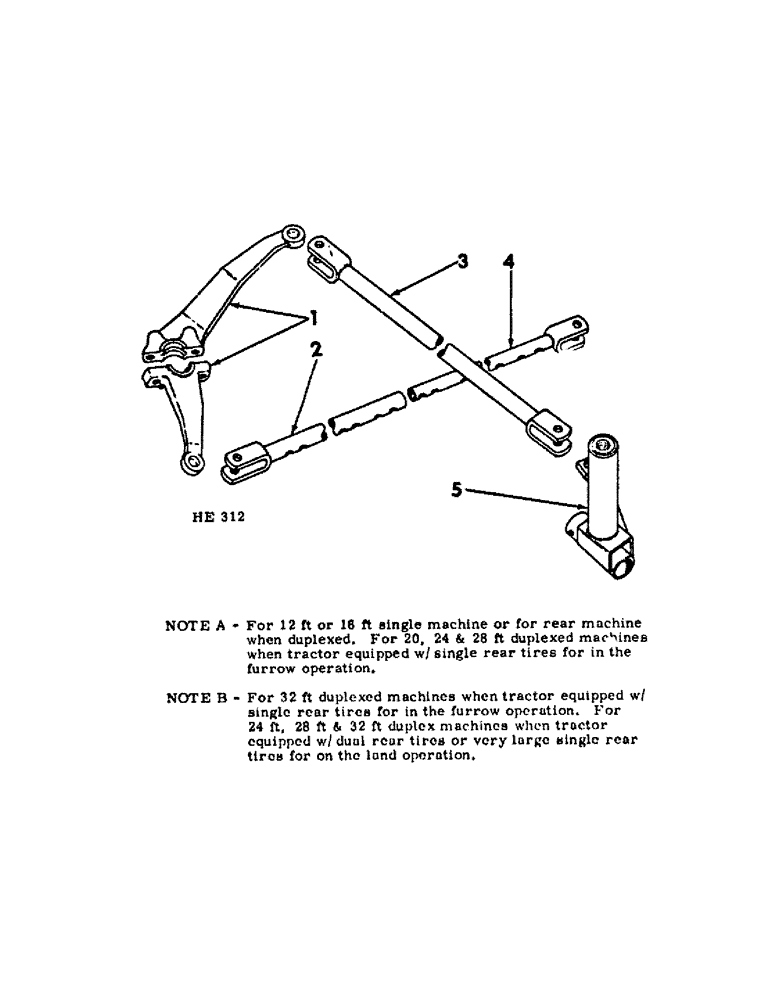

Запчасти Case IH 300 (10-05) - FRONT FURROW WHEEL STEERING

1

597081R93

LEVER

hitch steering (Includes 2 - 271725, bolts)

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 X 2-1/2" BOLT

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

597072R1

TUBE

hitch steering

1шт.

For 12 ft or 16 ft single machine or for rear machine when duplexed. For 20, 24 & 28 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation.

1шт.

2

597074R1

TUBE

hitch steering

1шт.

For 32 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation. For 24 ft, 28 ft & 32 ft duplex machines when tractor equipped w/dual rear tires or very large single rear tires for on the land operation.

1шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

3

597070R1

ROD

front furrow wheel tie

1шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD PIN

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

597076R1

ROD

hitch steering

1шт.

For 12 ft or 16 ft single machine or for rear machine when duplexed. For 20, 24 & 28 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation.

1шт.

4

597079R1

ROD

hitch steering

1шт.

For 32 ft duplexed machines when tractor equipped w/single rear tires for in the furrow operation. For 24 ft, 28 ft & 32 ft duplex machines when tractor equipped w/dual rear tires or very large single rear tires for on the land operation.

1шт.

597078R1

PIN

3/4 X 2-1/4" STD-HD-DLD SPECIAL PIN

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

QUICK-ATTACHABLE C-PIN

2шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD SPECIAL PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

596821R1

PIVOT, front furrow wheel (For use on machines w/identification plate 300C1111 or 300C1112)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUB-FITTING

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

5/8 X 3-1/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

5

811432C1

PIVOT

front furrow wheel (For use on machines w/identification plate 300C1113)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUB-FITTING

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

5/8 X 3-1/4" STD-HD-DLD PIN

1шт.
