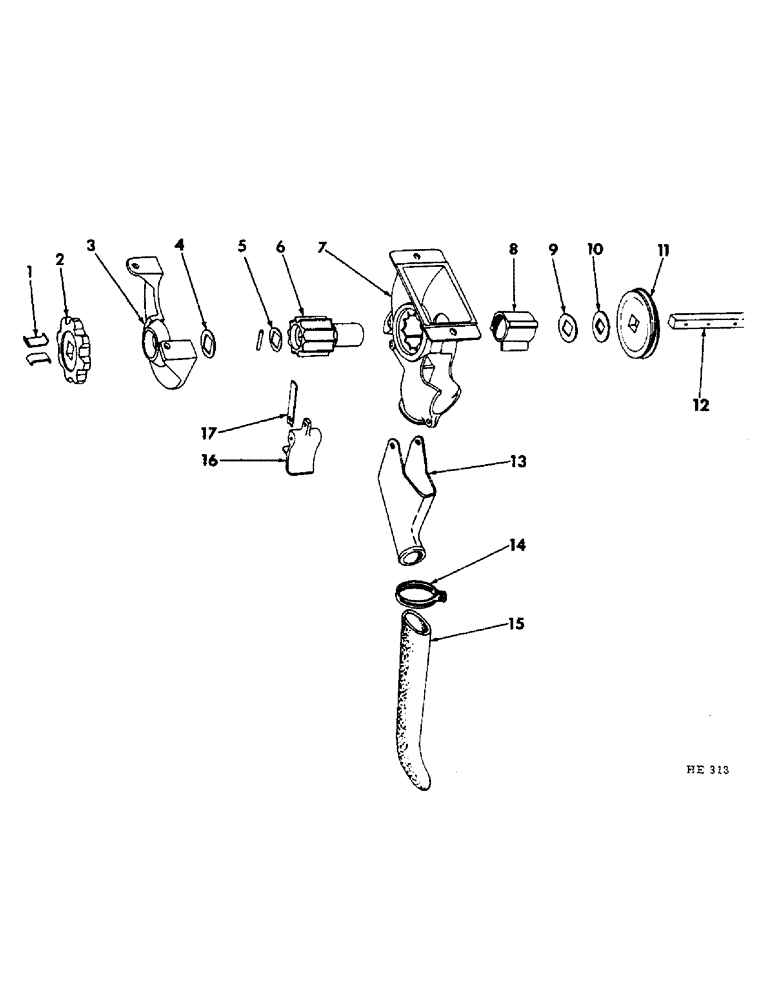

Запчасти Case IH 300 (34) - GRAIN SEEDING FEED SHAFT

1

N11792

CLIP

sprocket retaining, 2 used 8 ft. machine, 4 used 12 & 16 ft. machine

1шт.

2

596913R1

SPROCKET ASSY.

SPROCKET, 10T feed shaft driven, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine

1шт.

3

603119R2

HANGER

driven sprocket, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 2 per hanger

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

4

N11791

WASHER

sprocket retaining, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine

1шт.

5

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

feed cup spring, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

6

603111R1

ROLLER

ROLL, feed cup, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

603134R1

PIN,4.76mm OD x 29.37mm L

feed cup, 1 per roll

1шт.

7

603816R91

CUP

grain feed, Includes 1, 603112R1 block 1, 603295R91 cup 1, 603111R1 roll & 2, 602106R1 washer, 16 use 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

7

603295R91

CUP

grain feed, 1 per tube

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 per cup Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

619855R1

WASHER

.344 x .750 x .054, 1 per bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

8

603112R1

BLOCK

feed cup shut-off, 1 per cup

1шт.

9

N11720

WASHER

21/32 sq hole x 1-1/2 x 12 ga, Feed cup, 1 used per feed cup

1шт.

10

602106R1

SQ HOLE WASHER

21/32 sq hole x 1-11/64 x 32 ga

1шт.

11

WORM, land measure gear, For service parts refer to land measure 1967 to 1973 & 1975 and since mounted to feed shaft, Also shown on main shaft built 1974 refer to two speed seeding drive

1шт.

12

596911R1

BAR, grain feed shaft, 1 used 8 ft. machine, 2 used 16 ft. machine

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), , 32 used 8 ft. machine, 64 used 16 ft. machine 3/16" x 1 1/8"

1шт.

12

596912R1

BAR, grain shaft, 12 ft. machine

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

48шт.

13

596915R1

TUBE,2.03" OD, 5.94, 3.38" Length

RECEIVER, grain tube, 1 per tube

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

14

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

Switch Mounting, grain tube, 1 per tube

1шт.

15

596916R1

TUBE,19.5" Length

grain, 1 per feed cup

1шт.

16

603108R11

BOTTOM

feed cup dump, Includes 1, 603178R1 latch & 1, 106883 rivet, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), , 1 per bottom 3/16" x 2 1/2"

1шт.

17

603178R1

LATCH

dump bottom, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1 rivet used per latch Truss Hd, 3/16" x 3/8"

1шт.
