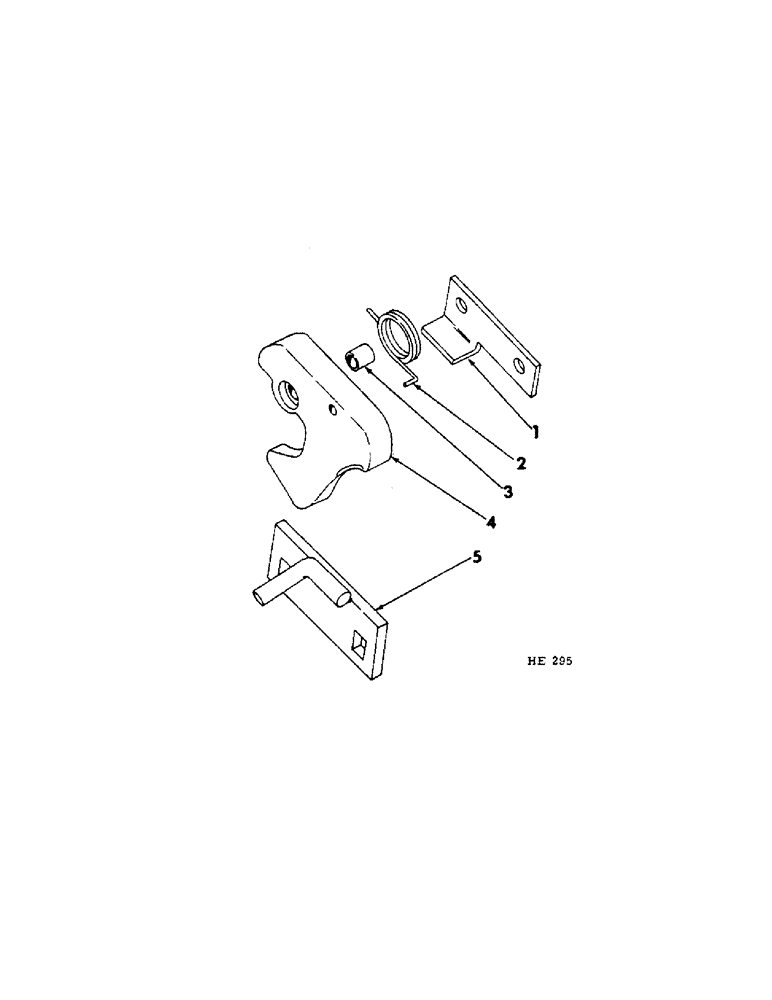

Запчасти Case IH 300 (42[A]) - FERTILIZER HOPPER LID FASTENER

1

604451R1

ANGLE

BRACKET, cover fastener

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

604448R1

SPRING

cover fastener

1шт.

3

604447R1

BUSHING

fastener latch

1шт.

4

604454R2

LATCH

cover fastener

1шт.

272519

SCREW

1/4-20 x 1 slt truss hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

604446R91

STOP ASSY., cover fastener latch

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
