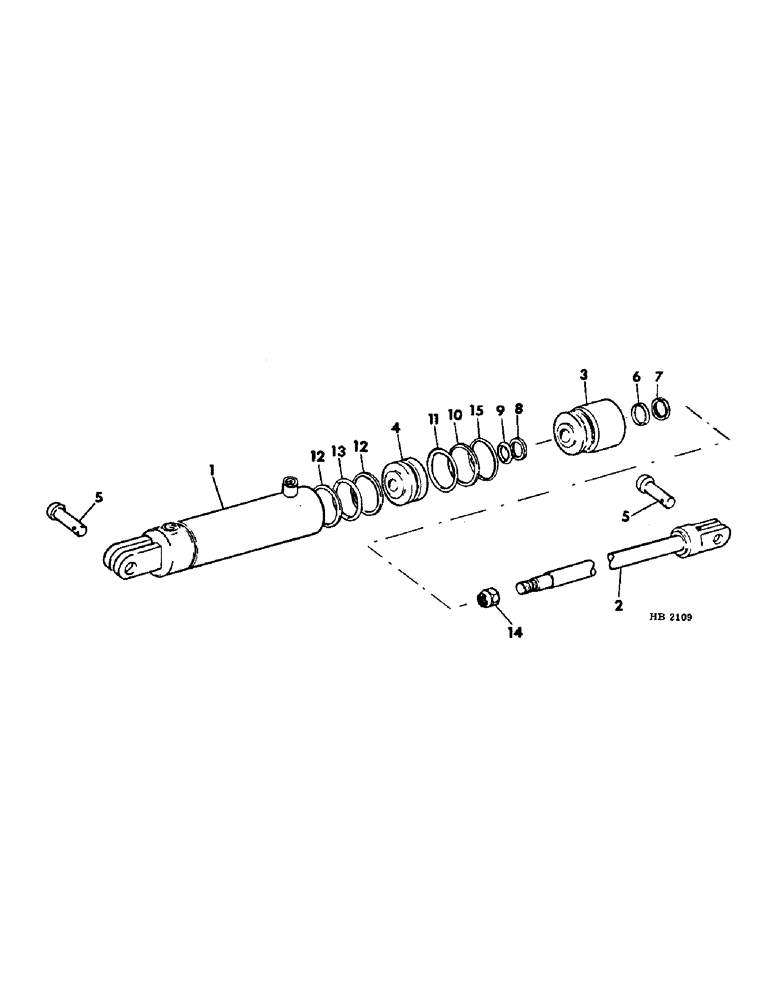

Запчасти Case IH 300 (61) - REMOTE CONTROL HYDRAULIC CYLINDER 3-1/2 X 8

61105C91

CYLINDER

ASSY., remote control hydraulic, Consists of all parts listed

1шт.

1

61072C1

BODY

hyd cylinder

1шт.

2

547719R1

ROD

piston

1шт.

3

60806C1

HEAD

front

1шт.

4

547724R1

PISTON

1шт.

5

61571C1

PIN

cyl headed pivot

2шт.

520175R1

CLIP

PIN, q.a. cotter

2шт.

6

386421R1

WASHER

wiper felt

1шт.

7

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

retainer

1шт.

8

546279R1

WASHER

back-up

1шт.

9

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8 piston rod seal

1шт.

10

404015R1

BACK-UP RING

WASHER, back-up

1шт.

11

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8 front head

1шт.

12

375936R1

BACK-UP RING

WASHER, back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 piston seal

1шт.

14

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 hex lock

1шт.

15

405002R1

RING

RETAINER, front head

1шт.

547725R91

SEAL KIT

PACKAGE, hyd cyl seal service, Consists of items 6 through 15

1шт.
