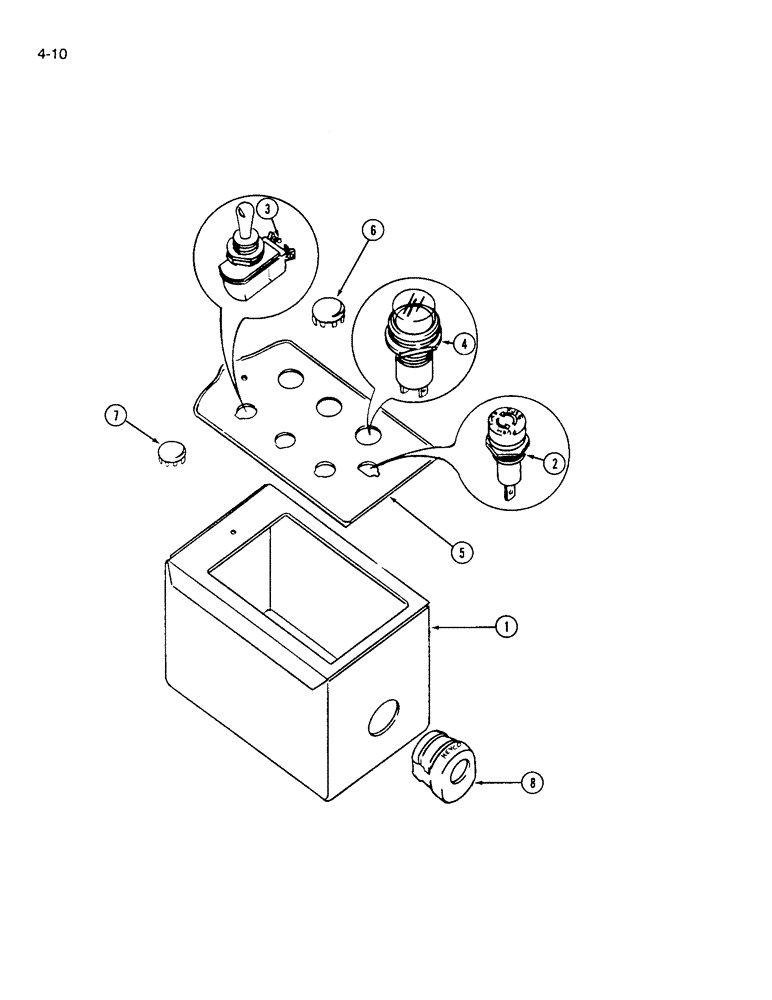

Запчасти Case IH 310 (4-10) - AVADEX CONTROL BOX (04) - ELECTRICAL SYSTEMS

1

116259C4

BOX

ASSEMBLY - control

1шт.

NSS

NOT SOLD SEPARAT

BOX

1шт.

NSS

NOT SOLD SEPARAT

TOP

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- 1/4 inch x 1 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

376852R91

HOUSING

- fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

- 3AG, 15 amperes

1шт.

356445R91

KNOB

- fuse holder

1шт.

3

814982C1

SWITCH

- clutch control

1шт.

4

109369C91

LIGHT ASSY.

LIGHT ASSEMBLY - indicator

1шт.

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

71652C1

LENS

- lamp

1шт.

5

812455C1

PANEL

- control box cover

1шт.

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

1шт.

6

432487

HOLE PLUG BUTTON,11/16"

PLUG - 11/16 inch hole diameter, button (2 used on single, 1 used on duplex)

1шт.

7

188002

HOLE PLUG BUTTON,1/2"

PLUG - 1/2 inch hole diameter, button (2 used on single, 1 used on duplex)

1шт.

8

169851C1

GROMMET

BUSHING - strain relief

1шт.
