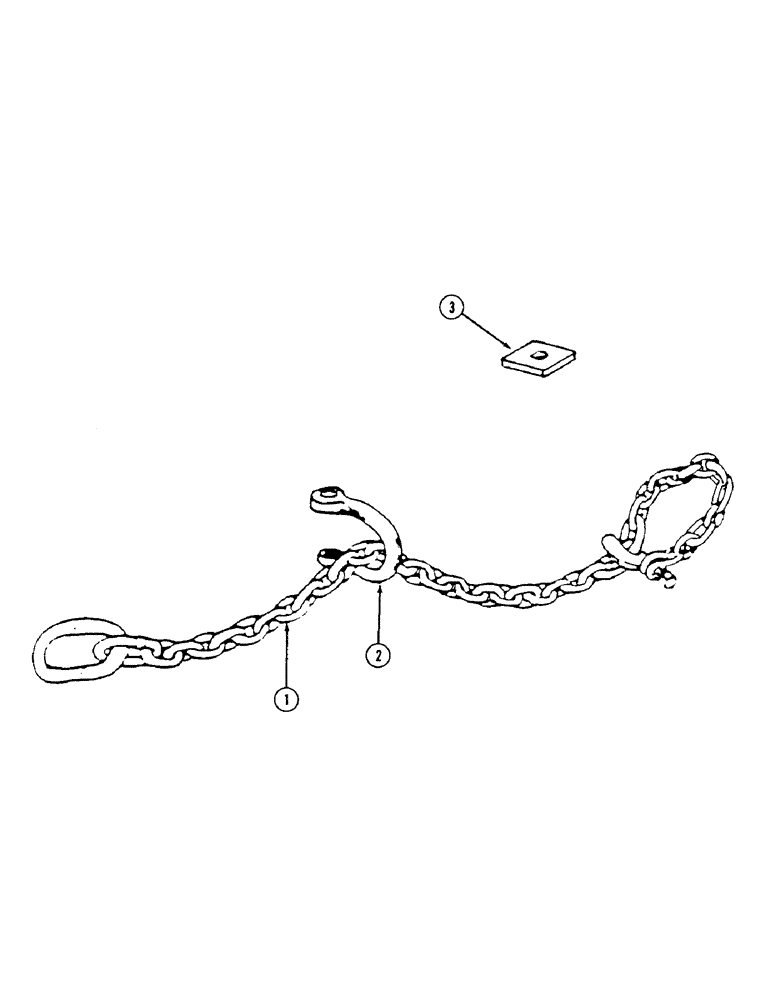

Запчасти Case IH 310 (9-036) - SAFETY CHAIN (09) - CHASSIS/ATTACHMENTS

1

100682C2

CHAIN (AG)

CHAIN - safety, 10,000 lb capacity (For use on single machine hitch)

1шт.

1

63506C2

CHAIN (CE)

CHAIN - safety, 20,000 lb capacity (For use on duplex and triplex hitch machine)

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (For use on single machine hitch)

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(For use on duplex and triplex machine hitch) Hex, 3/4"-10 x 3 1/2", G5

1шт.

22244R1

LOCK NUT

- lock, 3/4 inch NC P/T

1шт.

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch

1шт.

2

S9173A

CLEVIS

- safety chain

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

20033R1

LOCK NUT

NUT - lock, 5/8 inch NC P/T

1шт.

3

590844R1

BAR

- safety chain, mounting (Duplex or triplex machine hitch)

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain (Consists of Ref No. 2 and attaching hardware)

1шт.
