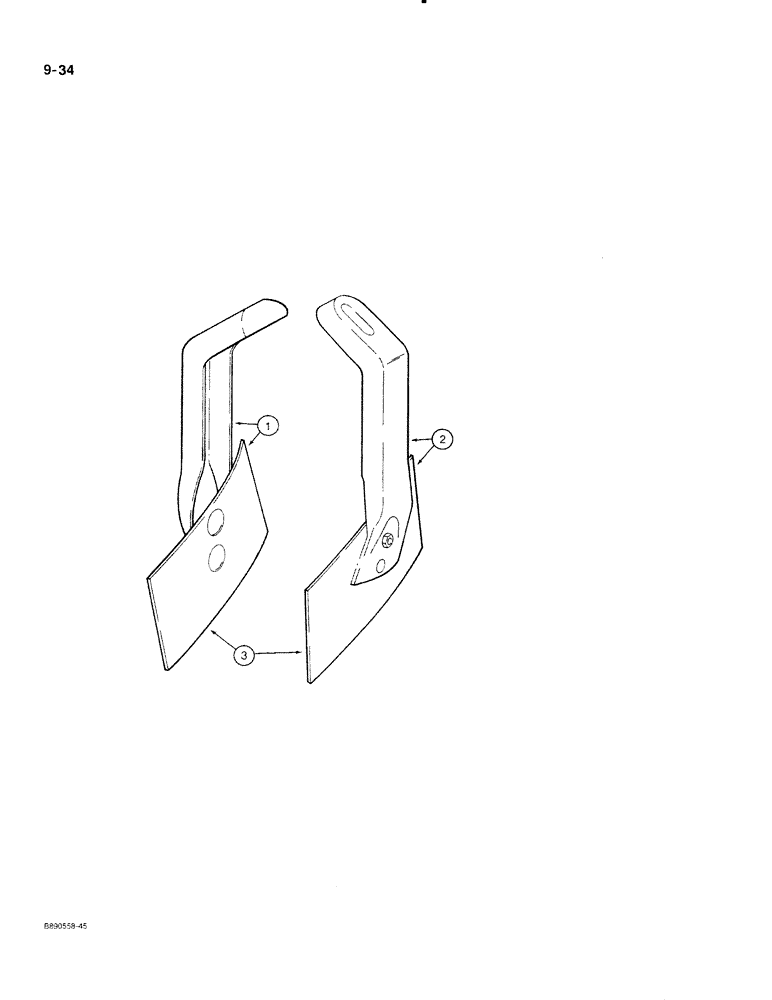

Запчасти Case IH 350 (9-34) - FURROW FILLER SCRAPERS, USED WITH SPOOL WITH ROUND CENTER HOLE UNITS BUILT FROM 1975 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

540458R92

HALF BLADE

SCRAPER - furrow filler, left-hand

1шт.

(1 used per disk)

1шт.

2

540459R92

BLADE

SCRAPER - furrow filler, right-hand

1шт.

(1 used per disk)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

(1 used per scraper)

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

(1 used per scraper)

1шт.

3

483096R2

KNIFE ASSY

BLADE - scraper

1шт.

(1 used per scraper)

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- truss head, 3/8 x 7/8 inch

2шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- disk scraper

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
