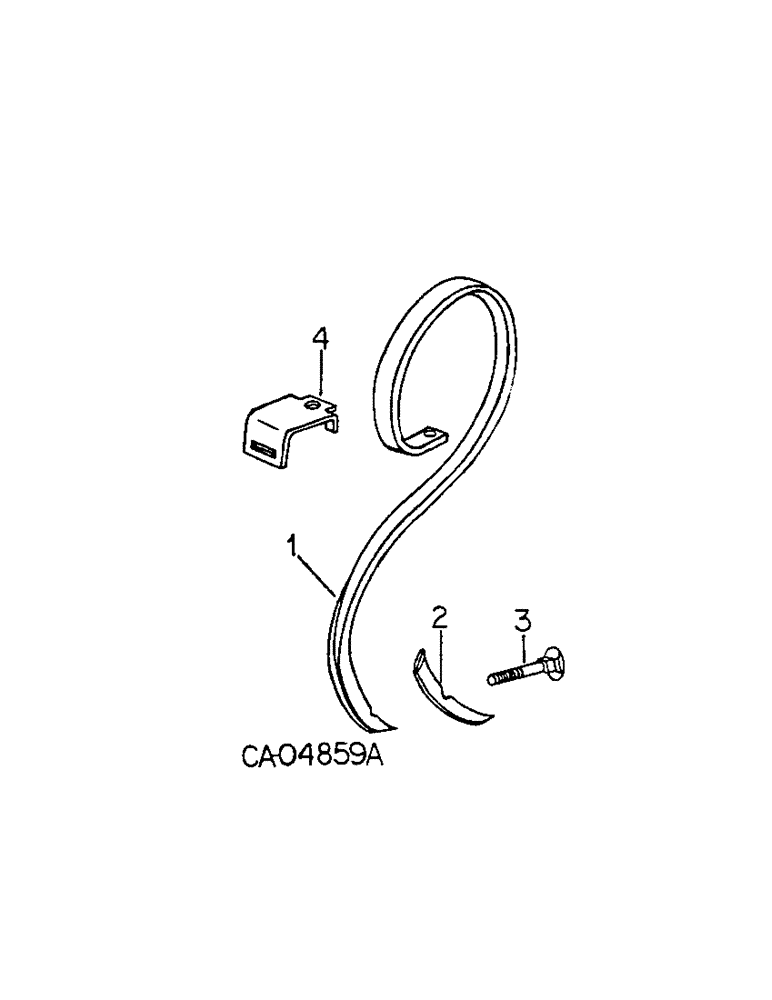

Запчасти Case IH 350 (AR-4) - TINES AND ATTACHING PARTS

1

63096C1

TOOTH

TINE, 31 used 4/10 ft., 37 sued w/12 ft., 43 used w/14 ft., 55 used w/18 ft., 61 used w/20 ft.

1шт.

2

64478C1

POINT

1 per tine, replaces 63098C91

1шт.

3

734808R2

BOLT

plow, 1 per tine

1шт.

495-21044

WASHER,3/8"

1 per bolt 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

4

63099C1

CLAMP

tooth, 1 per tine

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 znd hex-hd cap, 1 per clamp

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock, 1 per clamp

1шт.
