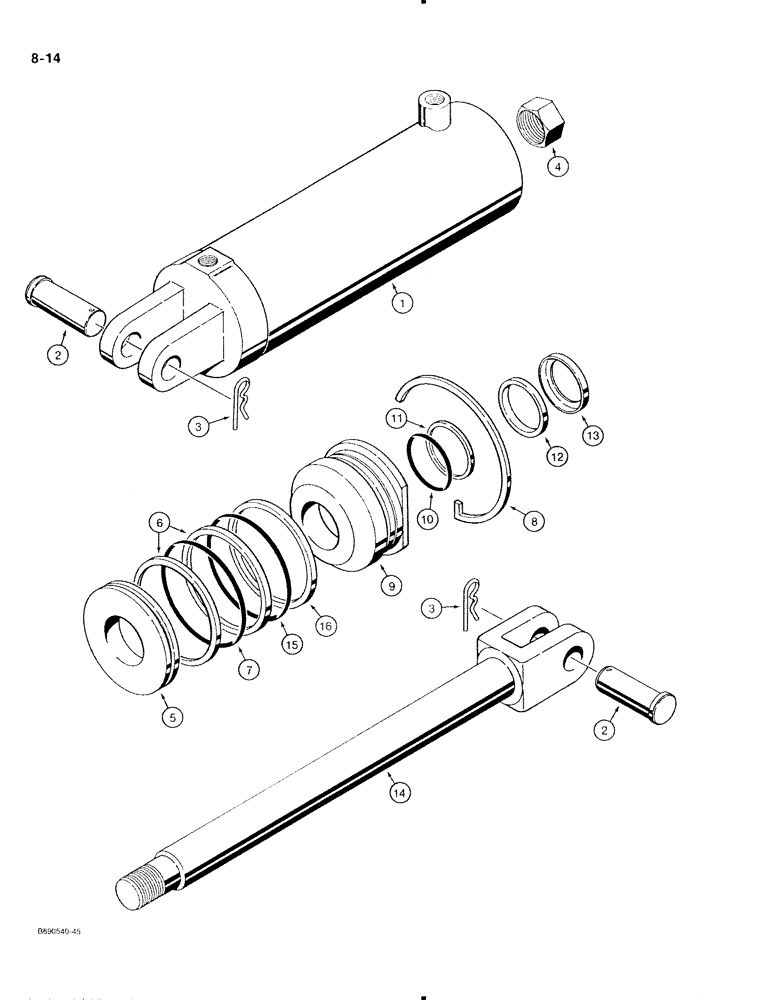

Запчасти Case IH 370 (8-14) - TRANSPORT LIFT CYLINDER, 61105C91 (08) - HYDRAULICS

61105C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID X 8 inch stroke, 7/8 inch O-ring boss ports, no longer available, for service order 1272147C91 cylinder assembly, see Figure: 8-16

1шт.

1

61072C1

BODY

TUBE - cylinder

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - cylinder pivot

2шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

375936R1

BACK-UP RING

RING - backup

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

- 3-1/8 x 3-1/2 x 3/16 inch, piston seal

1шт.

8

405002R1

RING

- locking, gland

1шт.

9

60806C1

HEAD

GLAND - cylinder

1шт.

10

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

- 1-1/4 x 1-1/2 x 1/8 inch, rod

1шт.

11

546279R1

WASHER

RING - backup

1шт.

12

386421R1

WASHER

WIPER - piston rod

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

RETAINER - wiper

1шт.

14

547719R1

ROD

- piston

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

- 3-1/4 x 3-1/2 x 1/8 inch, gland

1шт.

16

404015R1

BACK-UP RING

- backup

1шт.

547725R91

SEAL KIT

KIT - seal and O-ring, includes Ref. 4, 6, 7, 8, 10, 11, 12, 13, 15 & 16

1шт.
