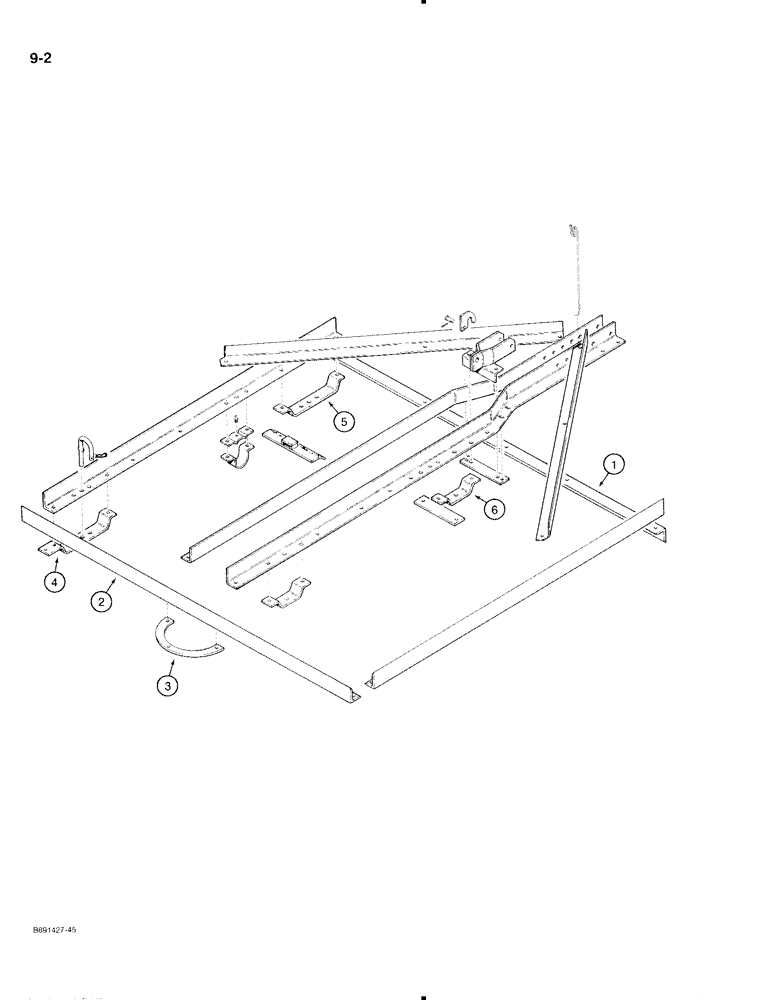

Запчасти Case IH 370 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

653679R1

ANGLE - front frame (Disk Harrow coded A through G and P through T)

1шт.

1

653680R2

ANGLE - front frame (Disk Harrow coded H through M, U, V and W and Disk Harrow coded N with 80 inch axle)

1шт.

1

653681R1

ANGLE - front frame (Disk Harrow coded N)

1шт.

2

653682R1

ANGLE - rear frame (Disk Harrow coded A through G and P through T)

1шт.

2

653683R2

ANGLE

- rear frame (Disk Harrow coded H through M, U, V and W and Disk Harrow coded N with 80 inch axle)

1шт.

2

653684R1

ANGLE - rear frame (Disk Harrow coded N)

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch, used with front frame angle

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch, used with rear frame angle

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 1/8 inch (Used with front frame angle only)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

3

653731R1

TRAILER HITCH

PLATE - rear, hitch

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

4

653668R1

STRAP - gang bar, rear outer (Disk Harrow coded A through G and P through T)

2шт.

4

653669R1

STRAP

- gang bar, rear outer (Disk Harrow coded H through M, U, V and W and Disk Harrow coded N with 80 inch axle)

2шт.

4

653672R1

STRAP - gang bar, rear outer (Disk Harrow coded N)

2шт.

5

653667R1

STRAP - gang bar, front outer (Disk Harrow coded A through G and P through T)

2шт.

5

653669R1

STRAP

- gang bar, front outer (Disk Harrow coded H through M, U, V and W and Disk Harrow coded N with 80 inch axle)

2шт.

5

653671R1

STRAP - gang bar, front outer (Disk Harrow coded N)

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

4шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

6

653666R1

STRAP

- gang bar, inner

4шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

4шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch

4шт.

PO28185

BLOCK

WASHER - special, square

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

271825

BOLT,Hex, 7/8" - 9 x 4 1/2", Gr 5

- hex, 7/8 NC x 4-1/2 inch

4шт.

462250R1

NUT

- hex lock, 7/8 inch NC

4шт.
