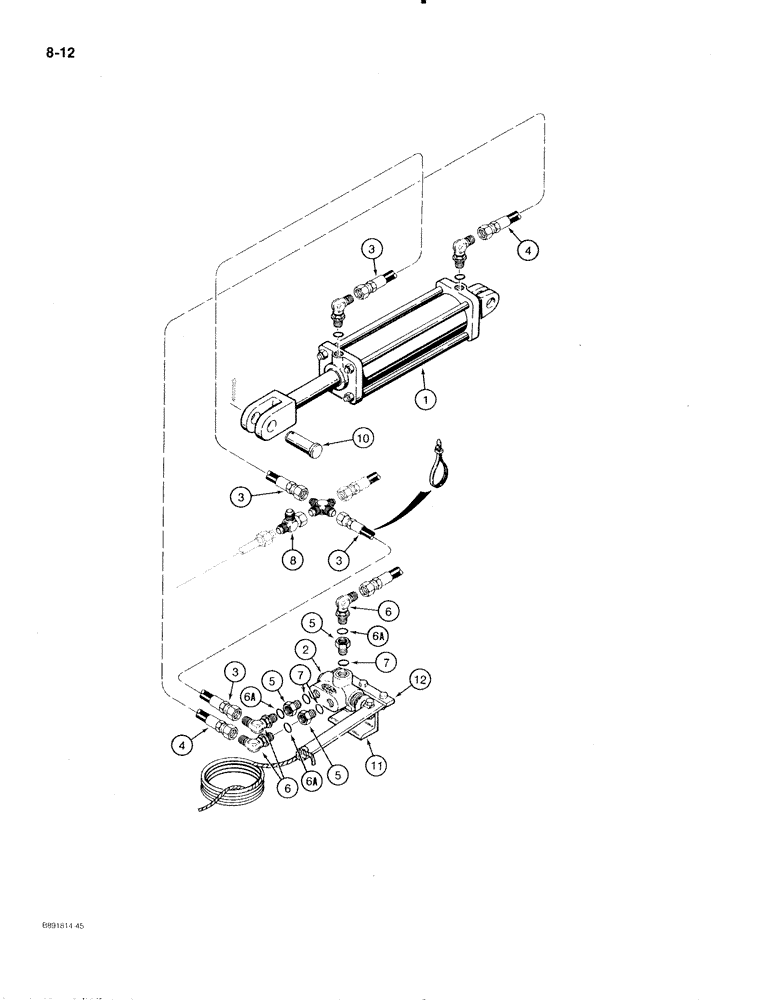

Запчасти Case IH 475 (8-12) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DISK HARROWS WITH HYDR. FOLDING WINGS, 3/8 INCH ID HOSES AT CYL. (08) - HYDRAULICS

1

145211C93

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, parts list Figure 8-34, no longer available, for service order 1272148C91 cylinder assembly, see Figure 8-44

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift, parts list Figure 8-44

1шт.

2

478887R91

VALVE

ASSEMBLY - diverter, parts list Figure 8-28

1шт.

3

129672C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 39 inch long, elbow to cross and cross to lift cylinder rod end

2шт.

4

1284323C1

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 15 inch long, to cylinder, closed end

1шт.

5

1252331C1

UNION

REDUCER - straight, 7/8-14 to 9/16-18 inch

3шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare

1шт.

10

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

11

62010C1

ANGLE

BRACKET - mounting, diverter valve

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

57068C1

BAR

- pivot, valve lever

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
