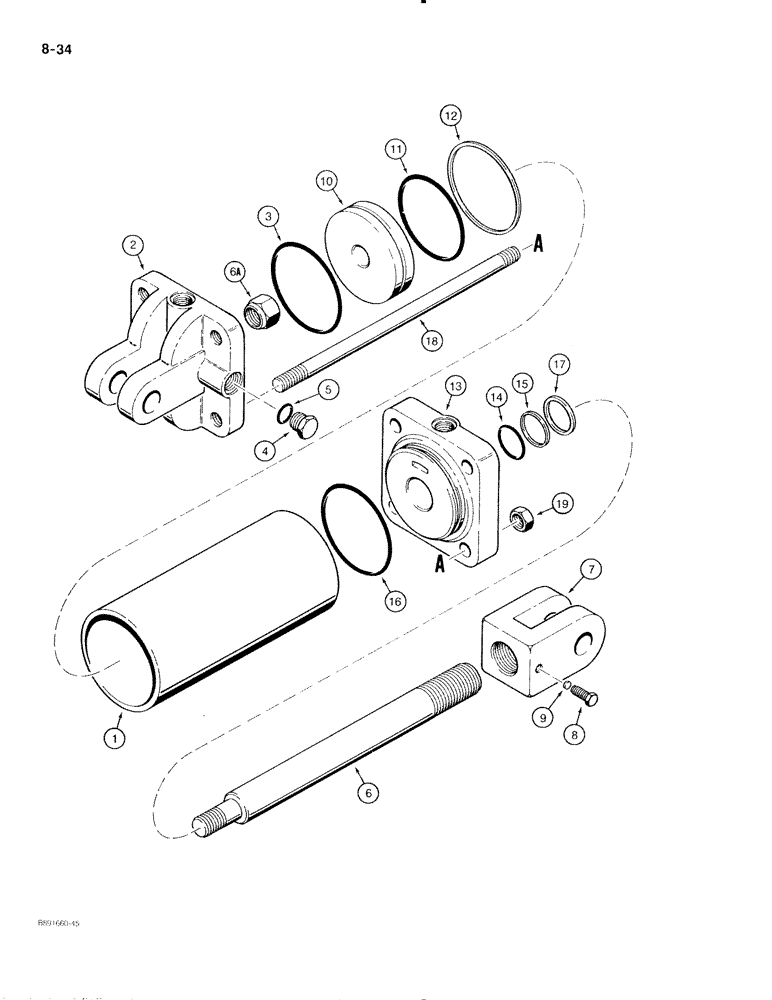

Запчасти Case IH 475 (8-34) - TRANSPORT LIFT CYLINDER -145211C93 (08) - HYDRAULICS

145211C93

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift, no longer available, for service order 1272148C91 cylinder assembly, parts list Figure 8-44

1шт.

1

145227C1

SLEEVE

TUBE - cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap

1шт.

4

9410359

PLUG

- hex, 1/2-20 inch O-ring boss

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

1267056C1

ROD

- piston, 1-3/8 inch OD, used with 1260885C1 and 1272920C1 glands

1шт.

6

145231C1

PISTON ROD

ROD - piston, 1-1/4 inch OD, used with 145228C1 gland

1шт.

6a

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

7

1267057C1

CLEVIS,3/8" - 16

- rod end, used with 1267056C1 rod and 1272920C1 gland

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod end, used with 145231C1 rod and 145228C1 gland

1шт.

8

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex, 3/8 NC x 7/8 inch

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - nylon, clevis

1шт.

10

149930C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

13

1260885C1

HEAD

GLAND - cylinder, no longer available, order 1272920C1 gland

1шт.

13

145228C1

GLAND - cylinder, no longer available, order 1 each of the following: 1267056C1 rod, 1267057C1 clevis, 80117C91 kit and 1272920C1 gland

1шт.

13

1272920C1

HEAD

GLAND - cylinder, replaces 1260885C1 and 145228C1 glands

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston rod, used with 145228C1 gland

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260885C1 and 1272920C1 glands

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, used with 145228C1 gland

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 1-3/8 inch ID, used with 1260885C1 and 1272920C1 glands

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 1-1/4 inch ID, used with 145228C1 gland

1шт.

18

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

19

102639

NUT,5/8"-11, G5

4шт.

80117C2

SEAL KIT

- cylinder repair, used with 1260885C1 and 1272920C1 glands, includes items 3, 5, 11, 12, 14 (seal), 16 and 17 (1-3/8 inch ID) Kit also includes 2 backup washers and 2 wear rings not used in this application

1шт.

145575C1

KIT

- cylinder repair, used with 145228C1 gland, includes items 3, 5, 11, 12, 14 (O-ring), 15, 16 and 17 (1-1/4 inch ID)

1шт.
