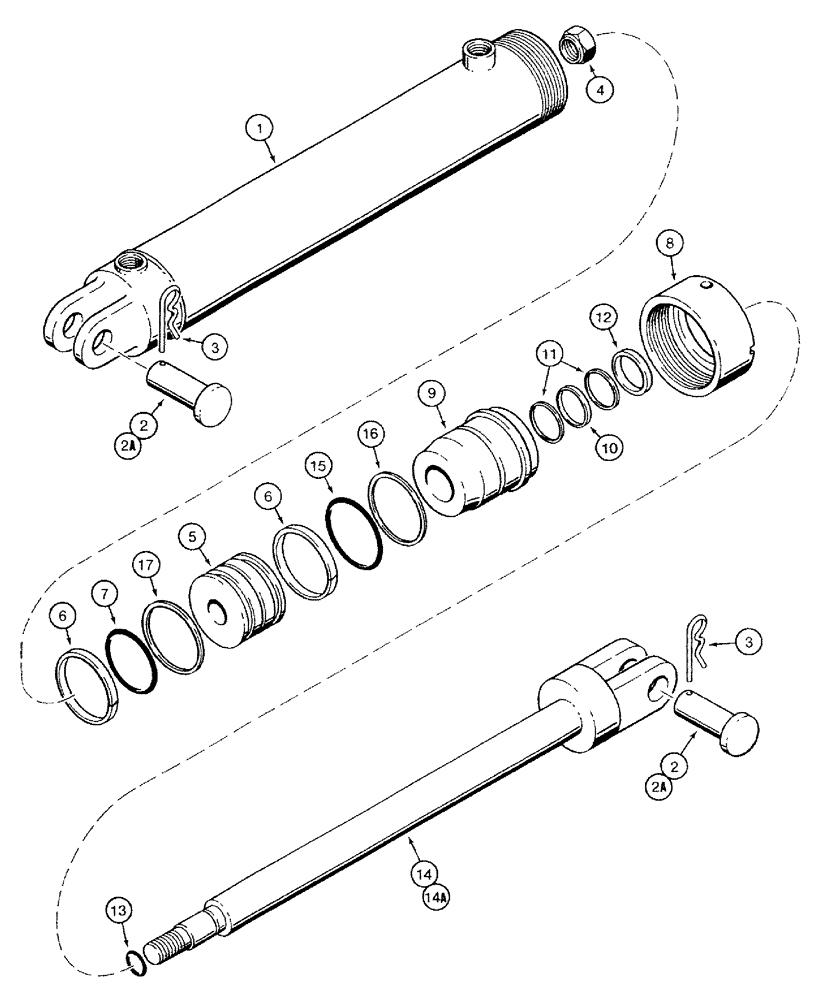

Запчасти Case IH 485 (8-10) - TRANSPORT LIFT CYLINDERS, 71958C91 AND 387351R93, NON-THREADED GLAND WITH THREADED RETAINER TYPE (08) - HYDRAULICS

71958C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, Inc. REF 1 - 13 and 14A - 17, no longer available, for service order 1272149C91 cylinder (parts list figure 8-26), 28537R1 clevis pin, 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

No longer available, for service order 1272149C92 cylinder (parts list Figure 8-13), 28537R1 clevis pin, 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

387351R93

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, Inc. REF 1 - 14 and 15 - 17, no longer available, for service order 1272149C91 cylinder (parts list figure 8-26), 28537R1 clevis pin, 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

No longer available, for service order 1272149C92 cylinder (parts list Figure 8-13), 427-20375 clevis pin and 432-1632 cotter pin

1шт.

1272149C92R

REMAN-HYD CYLINDER

485 CASE IH DISK HARROW, ASSEMBLY, Reman for New PN 387351R93

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

387359R12

TUBE

- cylinder

1шт.

2

60909C1

PIN

- cylinder pivot, 1-1/4 x 2-3/4 inch, if used

2шт.

2a

127892C1

PIN

- cylinder pivot, 1-1/4 x 3 inch, if used

2шт.

3

1970957C1

SPRING

PIN - hair, cylinder pin retaining

2шт.

4

230-46318

LOCK NUT,1 1/8"-12, GA

NUT - hex, self-locking, 1-1/8 inch NF

1шт.

5

387354R1

PISTON

- cylinder

1шт.

6

383005R1

RING

- wear

2шт.

7

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

Piston seal -151, 70 Duro, 2.987" ID x .103" Thk

1шт.

8

381089R1

RING

- retaining, gland

1шт.

9

387353R1

END

GLAND - cylinder

1шт.

9

1272149C92R

REMAN-HYD CYLINDER

485 CASE IH DISK HARROW, GLAND, cylinder, Reman for New PN 387353R1

1шт.

9

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

10

403995R1

RING

- square seal, piston rod

1шт.

11

387362R2

BACK-UP RING

- backup

2шт.

12

403845R1

WIPER SEAL

WIPER - piston rod

1шт.

13

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

Piston rod -214, 90 Duro, .984" ID x .139" Thk

1шт.

14

387361R13

ROD

- piston, part of 387351R93 cylinder, used with 1-1/4 x 3 inch pivot pin (item 2A), if used

1шт.

14a

128016C1

ROD ASSY.

ROD - piston, part of 71958C91 cylinder, used with 1-1/4 x 2-3/4 inch pivot pin (item 2), if used

1шт.

15

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

Gland -338, 90 Duro, 3.100" ID x .210" Thk

1шт.

16

381088R1

BACK-UP RING

RING - backup, gland seal

1шт.

17

381086R1

RING

- backup, piston seal

1шт.

387881R92

SEAL KIT

KIT - seal and O-ring, Inc. REF 6, 7, 10 - 13 and 15 - 17

1шт.
