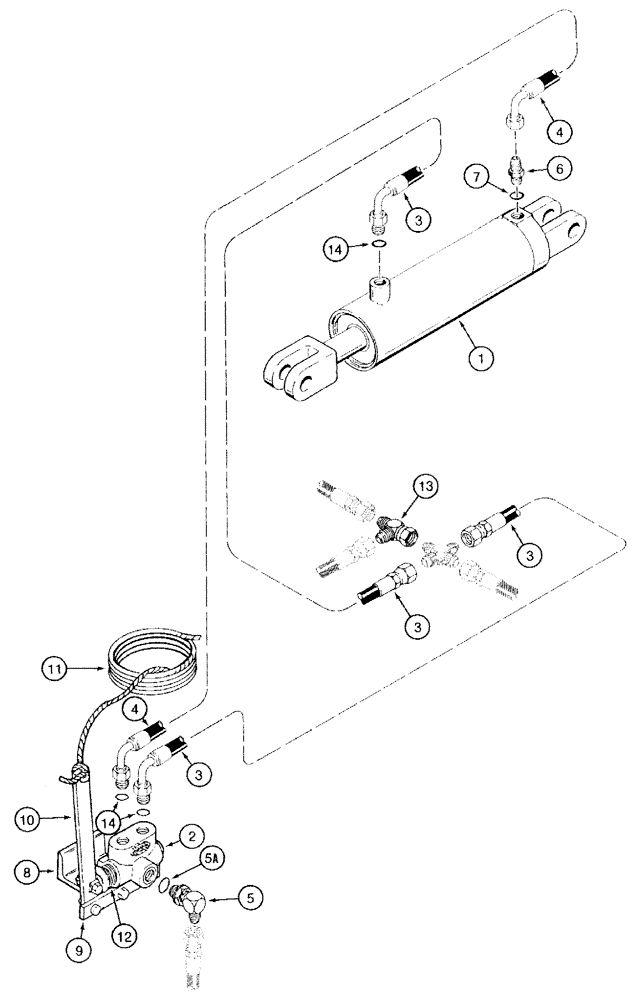

Запчасти Case IH 501 (8-03) - TRANSPORT LIFT HYDRAULIC CIRCUIT, WITH DIVERTER VALVE (08) - HYDRAULICS

1

71958C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-10 for service parts

1шт.

No longer available, for service order 1272149C92 cylinder assembly, parts list figure 8-13, also order (1) 28537R1 clevis pin, (1) 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

1

387351R93

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-10 for service parts

1шт.

No longer available, for service order 1272149C92 cylinder assembly, parts list figure 8-13, also order (1) 427-20375 clevis pin and (1) 432-1632 cotter pin

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 387351R93

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

61107C92

CYLINDER

ASSEMBLY- 3-1/2 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 8-09 for service parts

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 61107C92

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

145212C92

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-11 for service parts

1шт.

No longer available, order 1272149C92 cylinder assembly, parts list figure 8-13, not shown

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145212C92

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, if used, not shown

1шт.

See Figure 8-13 for service parts

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

478887R91

VALVE

ASSEMBLY - diverter

1шт.

See Figure 8-07 for service parts

1шт.

3

653318R91

HOSE

- 34 inch long, valve to cross and, Serial Range: cross-cylinder

2шт.

4

470779R92

HOSE

- 14 inch long, Serial Range: cylinder-valve

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg adj, 7/8-14 inch flare x O-ring boss, Inc. REF 5A

1шт.

5a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Inc. REF 7

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

62010C1

ANGLE

BRACKET - mounting, diverter valve

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

9628503

NUT,3/8"-16, G5

2шт.

9

57068C1

BAR

- pivot, valve lever

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

57069C1

BAR

LEVER - control, diverter valve

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

495-21038

WASHER,5/16"

(flat, 13/32 x 7/8 x 1/16") 5/16"

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

439-1416

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

435437A1

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

1шт.

11

REF

INSTRUCTION

ROPE - 1/4 x 144 inch, valve control lever, purchase locally

1шт.

12

369462R1

SPRING

- lever

1шт.

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

13

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flared

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.
