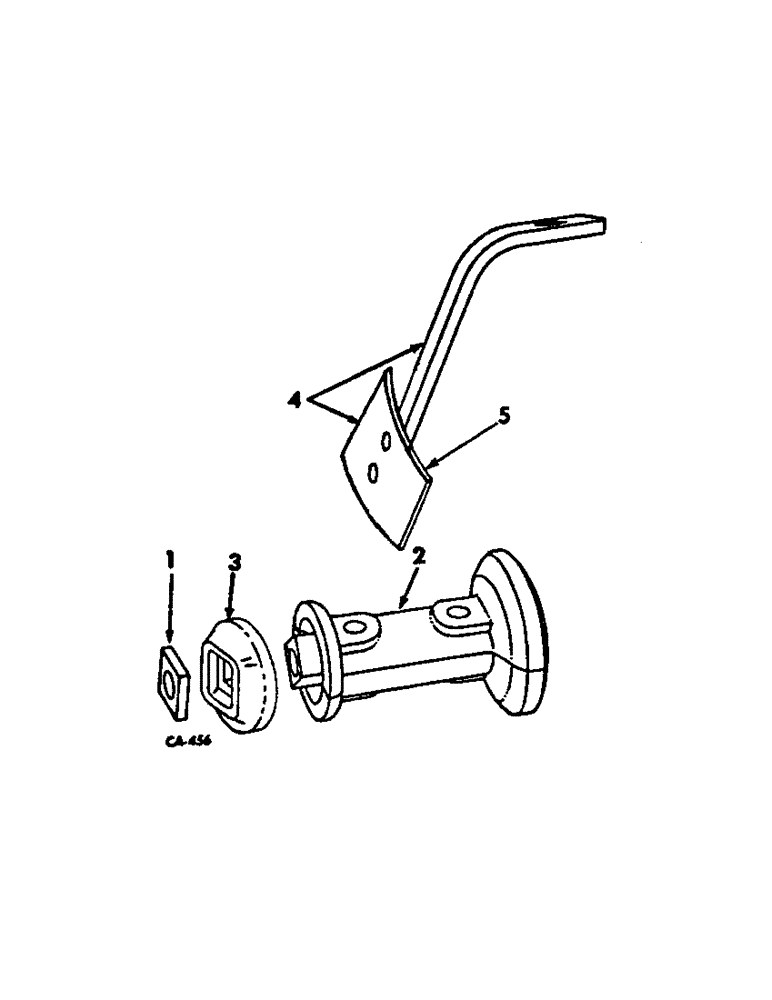

Запчасти Case IH 610 (AC-09) - FURROW FILLER AND HEAVY DUTY SCRAPERS, SAFETY LIGHT SOCKET

1

466986R1

BLOCK

SPACER, arbor bolt head washer

1шт.

2

482970R2

SPOOL

furrow filler

2шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2-13 x 3-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18840R1

BOLT

3/4-10 x 2-3/4 cd-pltd hex-hd mach.

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

1шт.

3

P4165

WASHER, arbor bolt head

1шт.

4

540461R91

BLADE

SCRAPER ASSY, LH, 16 for unit A, 19 for unit B, 22 for unit C

1шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

16 for unit A, 19 for unit B, 22 for unit C

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 16 for unit A; 19 for unit B; 22 for unit C 1/2"-13, G5

1шт.

4

540462R91

BLADE

SCRAPER ASSY, RH, 15 for unit A, 18 for unit B, 21 for unit C

1шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

15 for unit A, 18 for unit B, 21 for unit C

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 15 for unit A; 18 for unit B; 21 for unit C 1/2"-13, G5

1шт.

5

541049R1

HALF BLADE

BLADE, LH, 16 for unit A, 19 for unit B, 22 for unit C

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 7/8 truss-hd, 32 for unit A, 38 for unit B, 44 for unit C

1шт.

5

541050R1

HALF BLADE

BLADE, RH, 15 for unit A, 18 for unit B, 21 for unit C

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

3/8 x 7/8 truss-hd, 30 for unit A, 36 for unit B, 42 for unit C

1шт.
