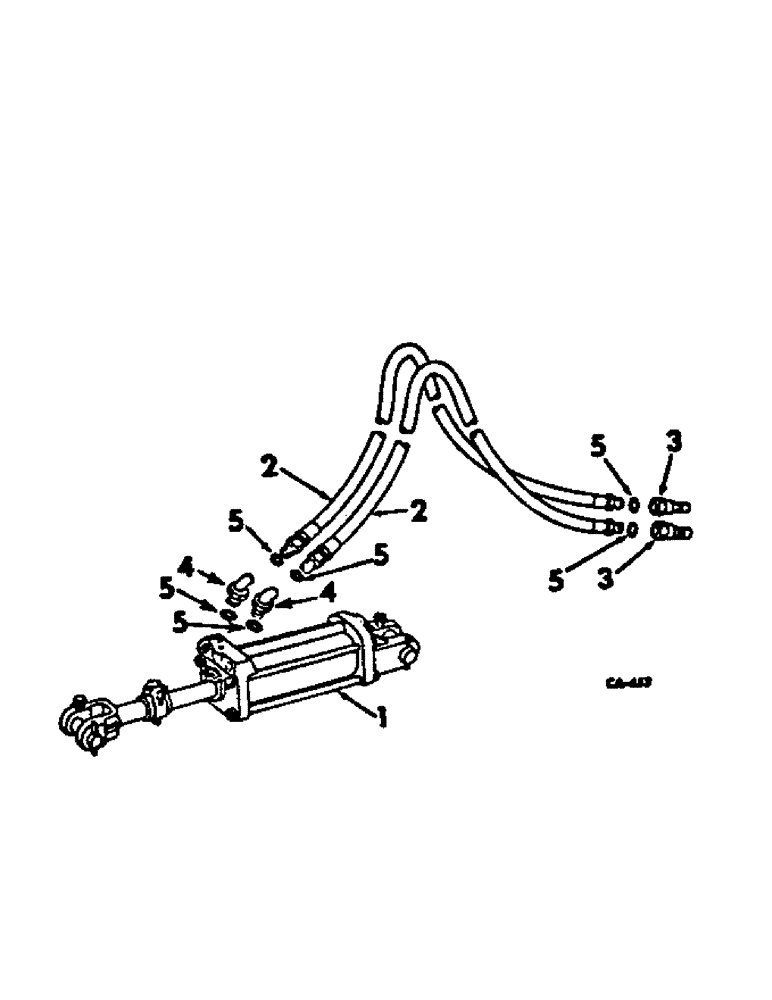

Запчасти Case IH 610 (AC-10[A]) - HYDRAULIC EQUIPMENT

1

403842R94

CYLINDER

ASSY, 3-1/2 x 8 hyd, 1 used for unit A and B, refer to cyl, 1 for components

1шт.

1

388688R96

CYLINDER

ASSY, 4 x 8 hyd, 1 used for unit C, refer to cyl, 1 for components

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

610 INTERNATIONAL HARVESTER OFFSET DISH HARROW, ASSY, 4 x 8 hyd, Reman for New PN 388688R96

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

478706R91

HOSE ASSY.

HOSE ASSY, 175 in. long, 2 for units A and B, 1 used for unit C

1шт.

2

480663R91

HOSE ASSY.

HOSE ASSY, 168 in. long, 1 used for unit C

1шт.

3

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing

2шт.

4

371357R91

ELBOW

90 deg, 2 used for unit C

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

6шт.

547495R91

DECAL

PRODUCT GRAPHIC, International

1шт.

547494R91

DECAL

PRODUCT GRAPHIC, IH

1шт.

547497R91

PACKAGE

PRODUCT GRAPHIC, model designation

1шт.

624957R1

DECAL

TAPE, refelective red

2шт.

487166R1

TAPE

reflective amber

1шт.
