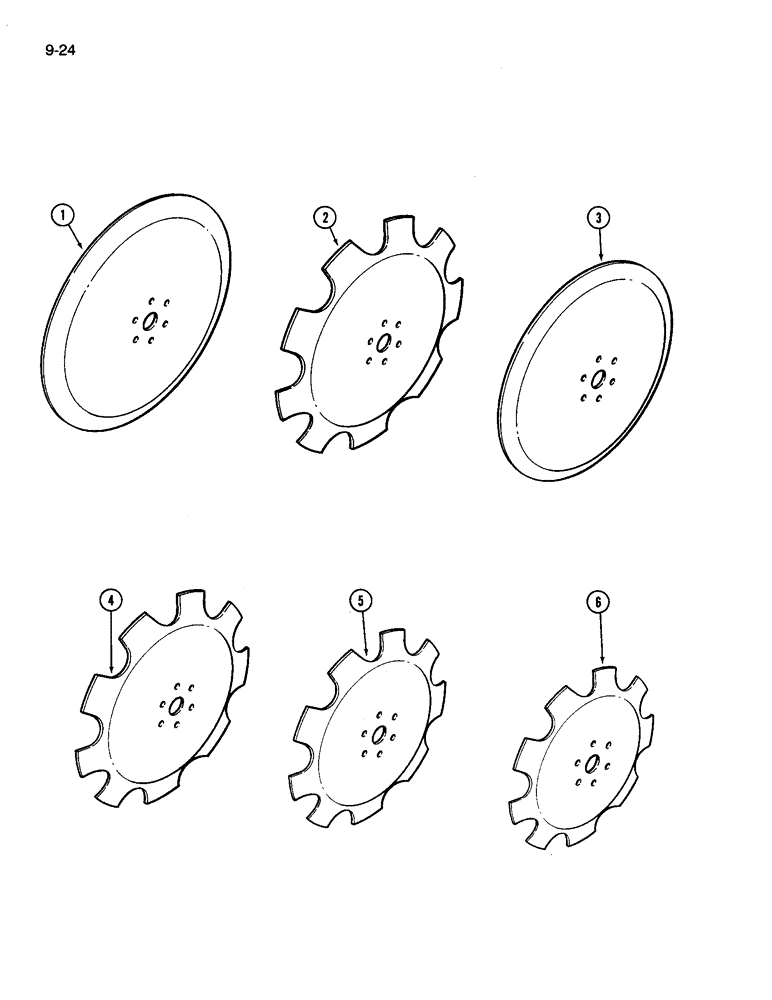

Запчасти Case IH 696 (9-24) - GANG DISC (09) - CHASSIS/ATTACHMENTS

1

31332R1

DISK HARROW

DISC - solid, 660 mm diameter x 6.5 mm thick (See Note)

1шт.

1

31357R1

PLOW DISC

DISC - solid, 660 mm diameter x 8 mm thick (See Note)

1шт.

2

31333R1

DISK HARROW

DISC - notch, 660 mm diameter x 6.5 mm thick (See Note)

1шт.

2

31356R1

DISK HARROW

DISC - notch, 660 mm diameter x 8 mm thick (See Note)

1шт.

3

31334R1

DISK HARROW

DISC - solid, 610 mm diameter x 6.5 mm thick

2шт.

4

31335R1

PLOW DISC

DISC - notch, 610 mm diameter x 6.5 mm thick

2шт.

5

31336R1

DISK HARROW

DISC - notch, 559 mm diameter x 6.5 mm thick

2шт.

6

31337R1

DISK HARROW

DISC - notch, 508 mm diameter x 6.5 mm thick

2шт.
