(08-25) - TRANSPORT LIFT CYLINDER - 145213C92, TIE BOLT TYPE, 4 INCH ID

Запчасти Case IH 770 (08-25) - TRANSPORT LIFT CYLINDER - 145213C92, TIE BOLT TYPE, 4 INCH ID (08) - HYDRAULICS

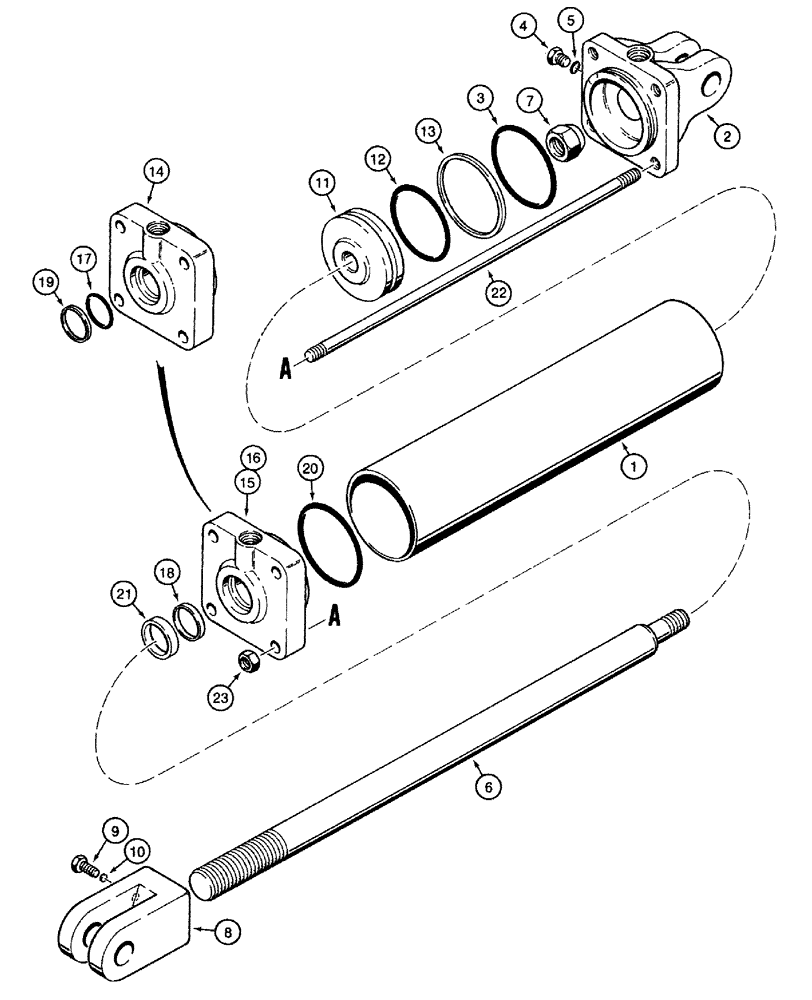

Схема запчастей Case IH 770 - (08-25) - TRANSPORT LIFT CYLINDER - 145213C92, TIE BOLT TYPE, 4 INCH ID (08) - HYDRAULICS
8
7
6
21
2
1
4
9
12
19
14
23
17
11
20
22
13
15
5
10
16
3
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

145213C92

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke

1шт.

No longer available, for service order 1272150C91 cylinder assembly, Figure 08-24, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

145245C1

SLEEVE

TUBE - cylinder

1шт.

2

1282336C1

HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap

1шт.

4

214389

PLUG,3/4" - 16 ORB

- hex socket, 1/2-20 inch, O-ring boss

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

1263346C1

ROD ASSY.

ROD - piston

1шт.

7

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod end

1шт.

9

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 7/8 inch

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - nylon, clevis

1шт.

11

149930C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

14

145246C1

HEAD

GLAND - cylinder, uses O-ring and back-up ring, items 17 and 19, no longer available, order 1282337C1 gland

1шт.

15

386767A1

HEAD

GLAND - cylinder, uses urethane seal, item 18, (Replaces 1260843C1)

1шт.

16

386767A1

HEAD

GLAND - cylinder, uses urethane seal, item 18

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston rod, used with 145246C1 gland

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260843C1 and 1282337C1 glands

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, used with 145246C1 gland

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

22

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

145577C1

KIT

- cylinder repair, used with 145246C1 gland, Inc. REF 3, 5, 12, 13, 17 and 19 - 21

1шт.

79979C3

SEAL KIT

KIT - cylinder repair, used with 1260843C1 and 1282337C1 glands, Inc. REF 3, 5, 12, 13, 18 - 21. Kit also includes (2) washers not used in this application

1шт.
