(08-29) - TRANSPORT LIFT CYLINDER - 145433C91, TIE BOLT TYPE, 3-1/2 INCH ID

Запчасти Case IH 770 (08-29) - TRANSPORT LIFT CYLINDER - 145433C91, TIE BOLT TYPE, 3-1/2 INCH ID (08) - HYDRAULICS

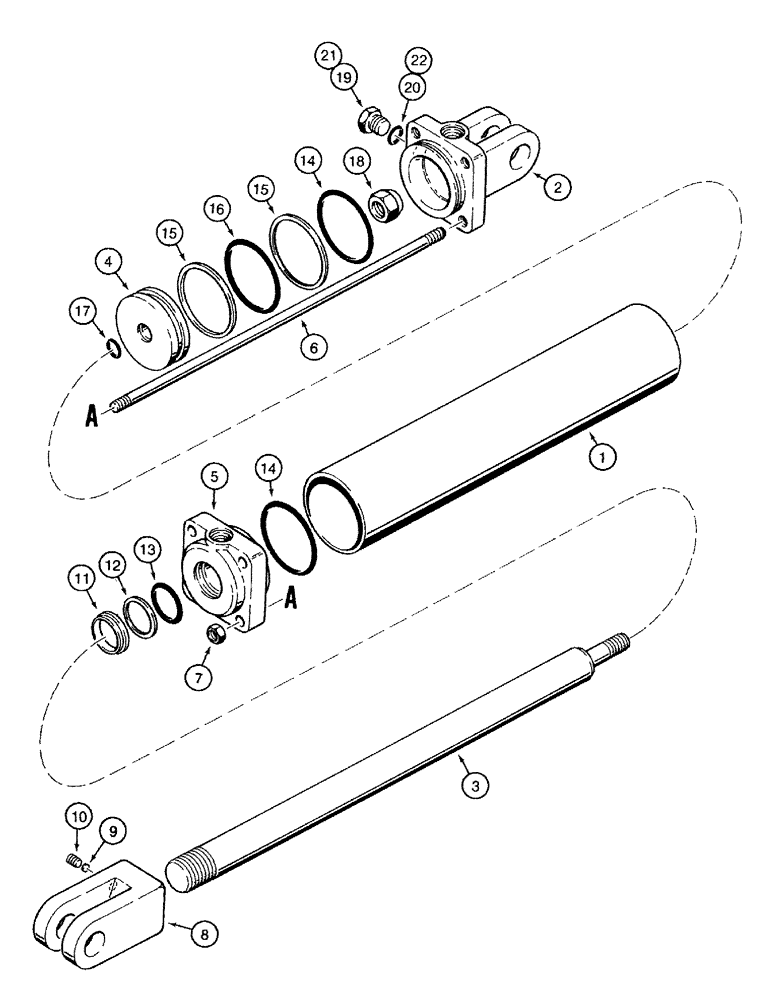

Схема запчастей Case IH 770 - (08-29) - TRANSPORT LIFT CYLINDER - 145433C91, TIE BOLT TYPE, 3-1/2 INCH ID (08) - HYDRAULICS
18
17
1
14
8
14
3
21
19
6
9
4
11
10
13
2
5
20
15
16
12
7
22
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

145433C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, Inc. REF 1 -22

2шт.

No longer available, for service order 1272149C92 cylinder assembly, Figure 08-30

1шт.

1272149C92R

REMAN-HYD CYLINDER

770 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145433C91

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

79153C1

END

CAP - end, cylinder, 9/16-18 inch ports, no longer available, for service order (1) 92533C1 end cap, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

2

92533C1

END

CAP - end, cylinder, 3/4-16 inch ports

1шт.

3

77750C1

ROD

- piston

1шт.

4

79154C1

PISTON

- cylinder

1шт.

5

77751C1

END

GLAND - cylinder, 9/16-18 inch port, no longer available, for service order (1) 92475C1 gland, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

5

92475C1

END

GLAND - cylinder, 3/4-16 inch port

1шт.

6

77752C1

ROD,1/2" - 13 x 20.125"

BOLT - tie, cylinder

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

76704C1

FORK

CLEVIS - rod end, Inc. REF 9

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup, rod O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - rod

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup, piston O-ring

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, Serial Range: rod-piston

1шт.

18

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

19

76349

PLUG,9/16" - 18 ORB

Use with 79153C1 end cap, Incl. Ref 20 Hex Hd, 9/16"-18 ORB

1шт.

21

214389

PLUG,3/4" - 16 ORB

Used with 92533C1 end cap Hex Hd, 3/4"-16 ORB

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 92533C1 end cap

1шт.

79155C1

SEAL KIT

- cylinder repair, Inc. REF 11 - 17

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
