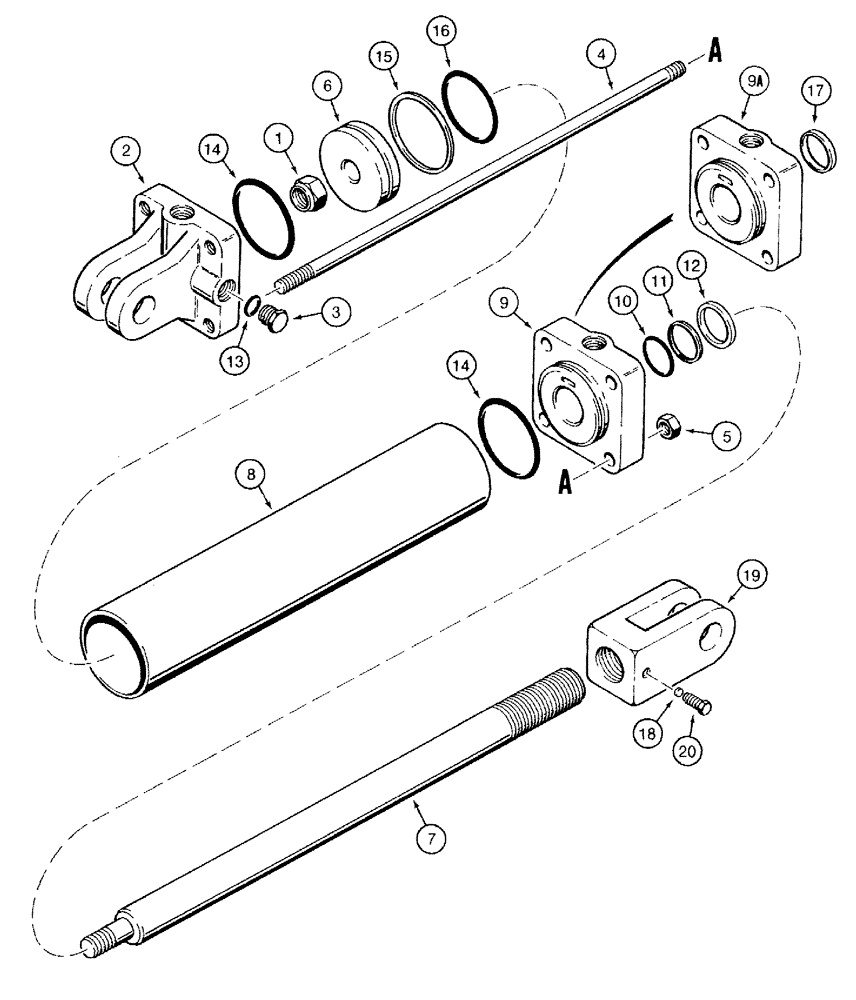

Запчасти Case IH 770 (08-31) - TRANSPORT LIFT CYLINDER - 145212C92, TIE ROD TYPE (08) - HYDRAULICS

145212C92

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

2шт.

No longer available, for service order 1272149C92 cylinder assembly, Figure 08-30

1шт.

1272149C92R

REMAN-HYD CYLINDER

770 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145212C92

2шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

145234C1

HEAD

- cylinder, closed end

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

145251C1

THREADED ROD,5/8" - 11 x 539mm

ROD - cylinder retaining

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

85179C1

PISTON

- cylinder

1шт.

7

1263346C1

ROD ASSY.

ROD - piston

1шт.

8

145235C1

CYLINDER

TUBE - cylinder

1шт.

9

145236C1

HEAD

GLAND - cylinder, rod end, used with REF 10 piston rod O-ring, no longer available, order 1260881C1 gland and 79155C1 kit for service

1шт.

9a

1260881C1

HEAD

GLAND - cylinder, rod end, used with REF 17 urethane rod seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-7/8 inch, piston rod seal, used with 145236C1 gland only, if used, order 145680C1 kit

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston rod seal, used with 145236C1 gland only, if used, order 145680C1 kit

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-3/8 inch, tube to gland and head

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-1/2 inch, piston

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, urethane, used with 1260881C1 gland, if used, order 79155C1 kit

1шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

19

145240C1

CLEVIS,1 -1/2" - 12

- rod end

1шт.

20

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 7/8 inch

1шт.

79155C1

SEAL KIT

- seal and O-ring, Inc. REF 12 - 17, used on cylinders with REF 17 urethane type piston rod seal

1шт.

145680C1

KIT

- seal and O-ring, Inc. REF 10 - 16, used on cylinders with REF 10 O-ring type piston rod seal

1шт.
