(09-12) - SCRAPERS, P.I.N. 18101 AND AFTER

Запчасти Case IH 770 (09-12) - SCRAPERS, P.I.N. 18101 AND AFTER (09) - CHASSIS/ATTACHMENTS

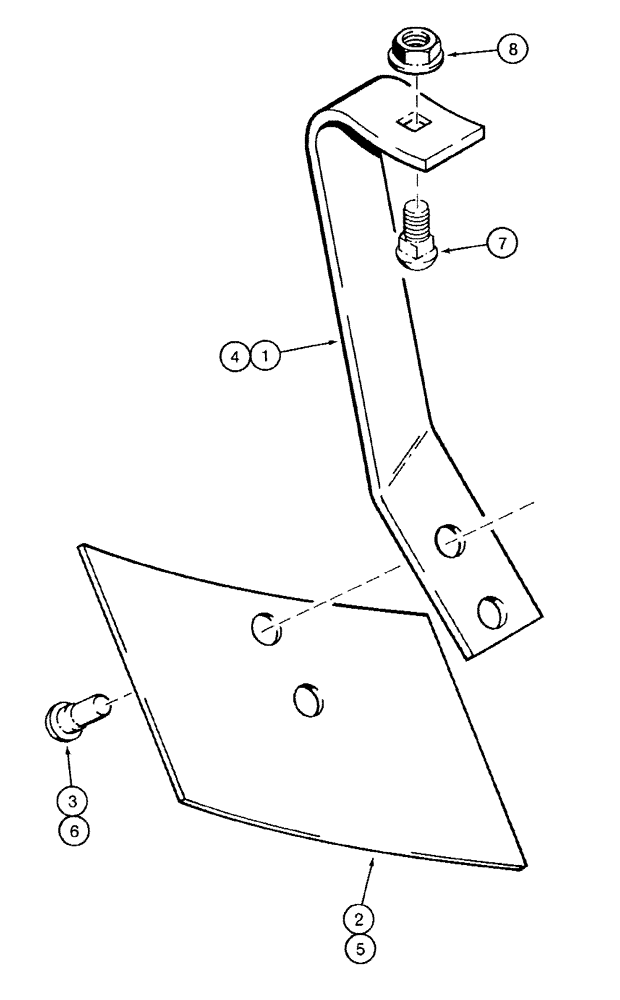

Схема запчастей Case IH 770 - (09-12) - SCRAPERS, P.I.N. 18101 AND AFTER (09) - CHASSIS/ATTACHMENTS
6
8
7
4
5
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded A)

12шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded B)

14шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded C, D)

16шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded E)

18шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded F)

20шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded G)

24шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded H)

23шт.

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3 (Disk Harrow coded J)

28шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

2

121469C1

BLADE

- scraper

1шт.

3

147-351

RIVET,12.7mm OD x 38.1mm L

- scraper blade

2шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded A)

11шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded B)

13шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded C, D)

15шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded E)

17шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded F)

19шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded G)

23шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded H)

23шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6 (Disk Harrow coded J)

27шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

5

121469C1

BLADE

- scraper

1шт.

6

147-351

RIVET,12.7mm OD x 38.1mm L

- scraper blade

2шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded A)

23шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded B)

27шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded C, D)

31шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded E)

35шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded F)

39шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded G)

47шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded H)

46шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (Disk Harrow coded J)

55шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded A)

23шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded B)

27шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded C, D)

31шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded E)

35шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded F)

39шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded G)

47шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded H)

46шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, Grade 8 (Disk Harrow coded J)

55шт.
