(8-12) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL WELDED OR TIE-BOLT TYPE CYLINDER

Запчасти Case IH 780 (8-12) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL WELDED OR TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS

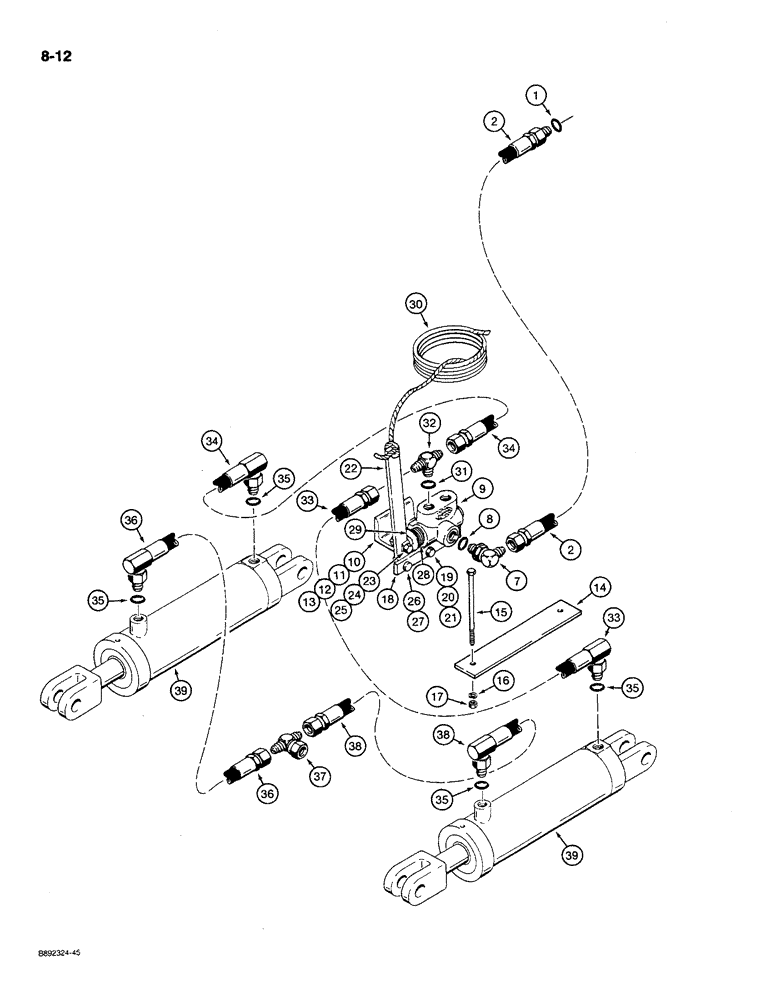

Схема запчастей Case IH 780 - (8-12) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL WELDED OR TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS
23
29
19
8
34
21
39
14
28
20
13
10
25
33
9
22
35
33
17
18
36
12
37
30
2
38
38
31
34
32
35
1
2
27
24
11
39
26
36
7
35
35
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1/2" ID Supply & Return Hoses, With Diverter Valve

1шт.

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

2

100970C1

HYDRAULIC HOSE,0.50" ID x 200.00", SAE 100R1

- 220 inch long, Tractor to diverter valve

1шт.

3

470976R1

CHANNEL

CLAMP - hose, not shown

1шт.

4

393068R1

HOSE

SHIELD - hose, not shown

1шт.

5

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

- hex, 1/2 NC x 2-1/2 inch, not shown

1шт.

6

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 5/64 inch, not shown

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

478887R91

VALVE

ASSEMBLY - diverter, parts list Figure 8-28

1шт.

10

62010C1

ANGLE

PLATE - mounting, diverter valve, not shown

1шт.

11

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch, not shown

2шт.

12

492-11038

LOCK WASHER,3/8"

not shown 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Not shown 3/8"-16, G5

2шт.

14

60268C1

BAR

- clamping, valve

1шт.

15

18792R1

BOLT

- hex, 3/8 NC x 7 inch

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

57068C1

BAR

- pivot, valve lever

1шт.

19

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Not shown 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Not shown

2шт.

22

57069C1

BAR

LEVER - control, diverter valve

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

24

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch, not shown

1шт.

25

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, Not shown

1шт.

26

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

27

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Not shown 1/8" x 1"

1шт.

28

369462R1

SPRING

- lever

1шт.

29

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

30

REF

INSTRUCTION

ROPE - 1/4 inch x 25 ft, purchase locally

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- adjustable, 7/8-14 inch thread

1шт.

33

129590C1

HYDRAULIC HOSE

HOSE - 50 inch long, tee to right-hand cylinder, closed end

1шт.

34

653317R91

HOSE ASSY.

HOSE - 26 inch long, tee to left-hand cylinder, closed end

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

36

129590C1

HYDRAULIC HOSE

HOSE - 50 inch long, cylinder rod, Serial Range: end-tee

1шт.

37

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- 7/8-14 inch thread, swivel

1шт.

38

653320R91

HOSE

- 66 inch long, tee to right-hand cylinder, rod end

1шт.

39

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, see Figures 8-32, 8-38 and 8-40 for correct assembly and components

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.
