(8-16) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL TIE-BOLT TYPE CYLINDER

Запчасти Case IH 780 (8-16) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS

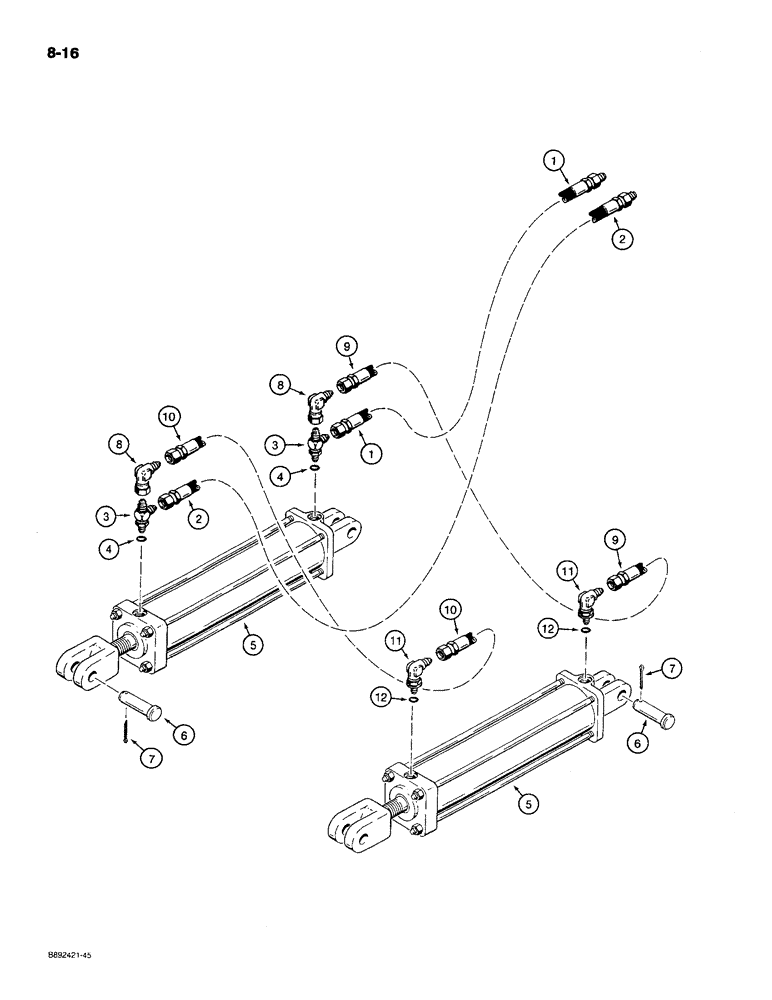

Схема запчастей Case IH 780 - (8-16) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DUAL TIE-BOLT TYPE CYLINDER (08) - HYDRAULICS
3
12
5
6
10
4
10
7
11
3
5
4
1
2
7
8
12
1
9
8
2
9
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

*

3/8" ID Supply & Return Hoses, Without Diverter Valve

1шт.

1

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

HOSE - 3/8 inch ID x 225 inch long, tractor to tee at closed end of left-hand cylinder

1шт.

2

1284292C1

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 245 inch long, tractor to tee at rod end of left-hand cylinder

1шт.

3

1284156C1

TEE

- special

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

5

84994C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-34, no longer available, for service order 1272149C91 cylinder assembly, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

5

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 84994C91

2шт.

5

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

5

1272149C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, parts list Figure 8-42

2шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

5

1272149C92R

REMAN-HYD CYLINDER

780 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 1272149C91

2шт.

5

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

6

28536R1

CLEVIS PIN,1 1/4" x 3 1/2"

PIN - clevis, 1-1/4 x 3-1/2 inch

4шт.

7

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 9/16-18 inch flared

2шт.

9

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

- Cylinder to cylinder, Closed end 9.52 mm ID x 1905.00 mm

1шт.

10

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

Cylinder to cylinder, Rod end 9.52 mm ID x 2795.00 mm

1шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
