(8-46) - TRANSPORT LIFT CYLINDER, 108681C91, WELDED TYPE, 4 INCH ID

Запчасти Case IH 780 (8-46) - TRANSPORT LIFT CYLINDER, 108681C91, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS

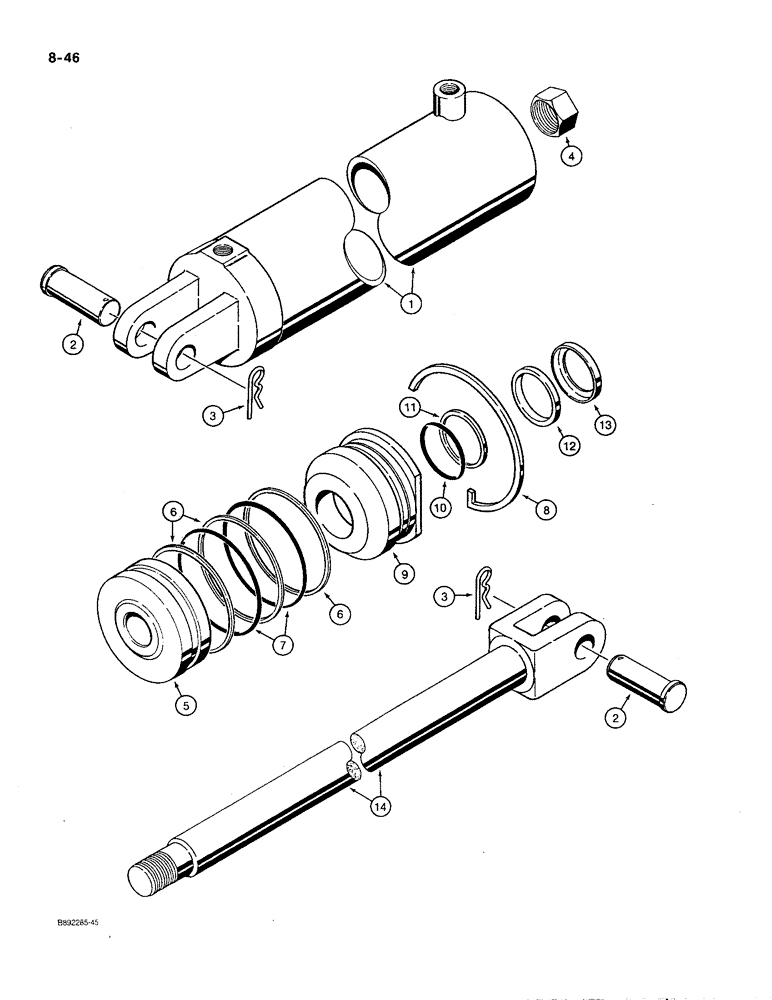

Схема запчастей Case IH 780 - (8-46) - TRANSPORT LIFT CYLINDER, 108681C91, WELDED TYPE, 4 INCH ID (08) - HYDRAULICS
3
1
5
4
7
8
10
11
6
14
2
12
3
6
9
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

108681C91

CYLINDER

ASSEMBLY- 4 inch ID x 16 inch stroke, transport lift, no longer available, for service order 1272150C91 cylinder assembly, parts list Figure 8-54, also order (2) 1252129C1 adapters, (2) 237-6008 O-rings and (1) 570828R1 O-ring

1шт.

1

548015R1

HYD TUBE

TUBE - cylinder

1шт.

2

60909C1

PIN

- cylinder pivot

2шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

381107R1

BACK-UP RING

- backup, piston O-ring

3шт.

7

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-5/8 x 4 x 3/16 inch, piston seal

2шт.

8

548025R1

RETAINER

RING - locking, gland

1шт.

9

108684C1

HEAD

GLAND - cylinder

1шт.

10

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

- 1-3/4 x 2-1/8 x 3/16 inch, rod

1шт.

11

387362R1

BACK-UP RING

RING - backup, rod O-ring

1шт.

12

389390R1

WIPER SEAL

WIPER - piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER - wiper

1шт.

14

108682C1

ROD

- piston

1шт.
