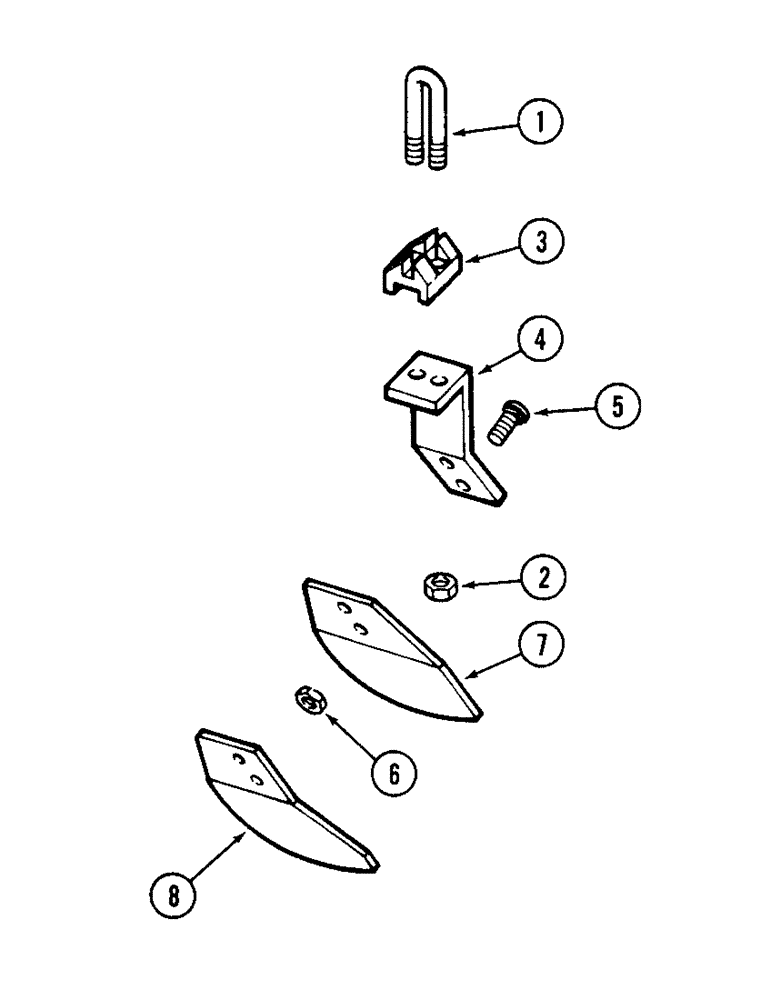

Запчасти Case IH RP (176[1]) - 9 INCH (228.6 MM) SPACING

1

T54785

BOLT

U-BOLT

27шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

54шт.

3

T55808

CLIP

- scraper bar

27шт.

4

T54789

ARM

- scraper

27шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

54шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

54шт.

7

T54788

HALF BLADE

BLADE - scraper

21шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

1

T54785

BOLT

U-BOLT

24шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

48шт.

3

T55808

CLIP

- scraper bar

24шт.

4

T54789

ARM

- scraper

24шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

48шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

48шт.

7

T54788

HALF BLADE

BLADE - scraper

18шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

1

T54785

BOLT

U-BOLT

21шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

42шт.

3

T55808

CLIP

- scraper bar

21шт.

4

T54789

ARM

- scraper

21шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

42шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

42шт.

7

T54788

HALF BLADE

BLADE - scraper

15шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.
