(172[2]) - 16 FOOT (4.9 M) CUT 9 INCH (228.6 MM) SPACING

Запчасти Case IH RP (172[2]) - 16 FOOT (4.9 M) CUT 9 INCH (228.6 MM) SPACING

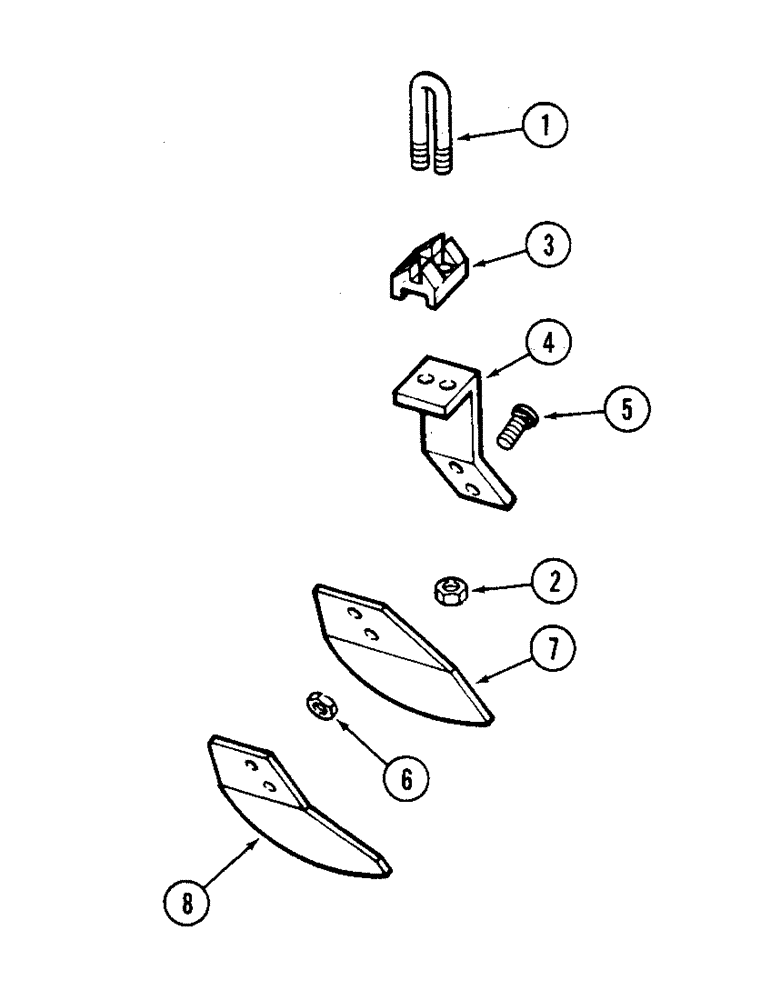

Схема запчастей Case IH RP - (172[2]) - 16 FOOT (4.9 M) CUT 9 INCH (228.6 MM) SPACING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T54785

BOLT

U-BOLT

18шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

36шт.

3

T55808

CLIP

- scraper bar

18шт.

4

T54789

ARM

- scraper

18шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

36шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

36шт.

7

T54788

HALF BLADE

BLADE - scraper

12шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

1

T54785

BOLT

U-BOLT

16шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

32шт.

3

T55808

CLIP

- scraper bar

16шт.

4

T54789

ARM

- scraper

16шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

32шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

32шт.

7

T54788

HALF BLADE

BLADE - scraper

10шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

1

T54785

BOLT

U-BOLT

20шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

40шт.

3

T55808

CLIP

- scraper bar

20шт.

4

T54789

ARM

- scraper

20шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

40шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

40шт.

7

T54788

HALF BLADE

BLADE - scraper

12шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

8шт.

1

T54785

BOLT

U-BOLT

18шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

36шт.

3

T55808

CLIP

- scraper bar

18шт.

4

T54789

ARM

- scraper

18шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

36шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

36шт.

7

T54788

HALF BLADE

BLADE - scraper

10шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

8шт.
